SKU: F7-13G

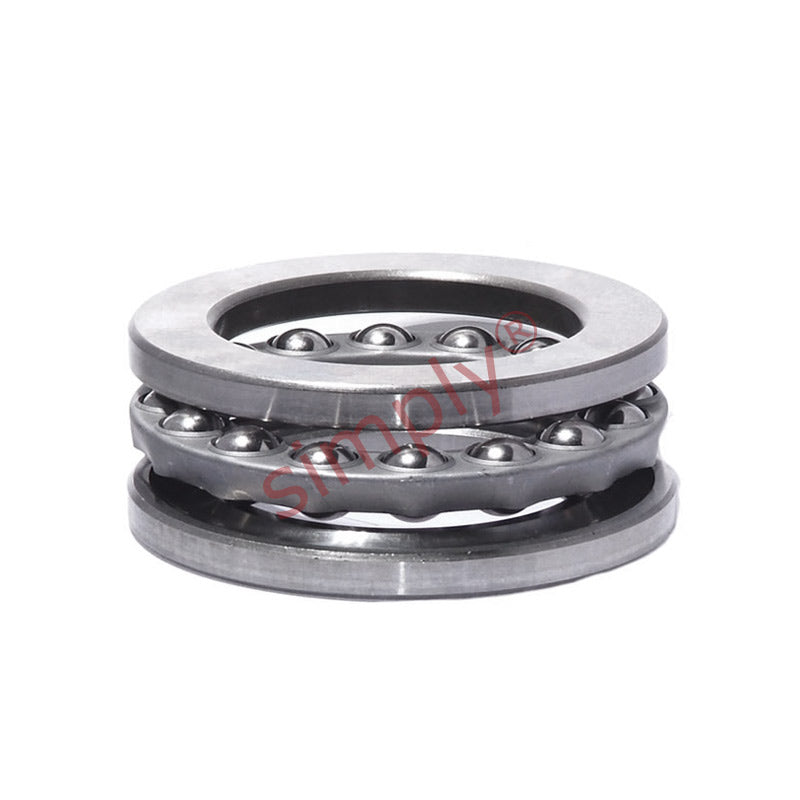

F7-13G Branded Precision Miniature Thrust Ball Bearing 7x13x4.5mm
F7-13G Branded Precision Miniature Thrust Ball Bearing 7x13x4.5mm
Regular price
£7.19
ex VAT£8.63inc. VAT
Regular price
Sale price
£7.19
ex VAT£8.63
inc. VAT
Equivalent to: F7-13M
In stock
Price Break
10+
£6.40
19+
£6.04
29+
£5.96
39+
£5.89
49+
£5.82
74+
£5.75
99+
£5.39
199+
£5.32
249+
£5.25
499+
£5.17
999+
£5.03
Description
Description
|
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
Equivalent: F7-13M
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 13mm
- Width:
- 4.5mm
Technical
Technical
| d | 7mm (+0/-0.008) |
|---|---|
| D | 13mm (+0/-0.011) |
| H | 4.5mm (+0/-0.075) |
| C | 12.8mm (+0.005/-0.020) |
| A | 7.2mm (+0/-0.05) |
| F | 0.2mm |
| Lubrication | Light Oil (AF2) |
| Max speed | 20000 rpm with adequate lubrication |
| Dynamic load | 215 kgf |
| Static load | 170 kgf |
