SKU: F6-12-EU

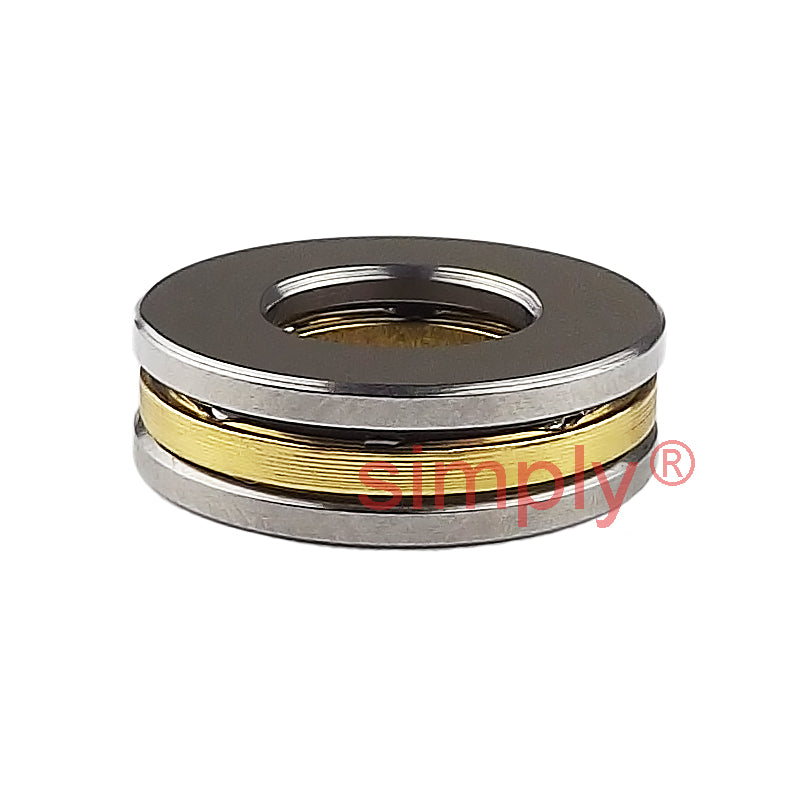

F6-12 Budget Single Thrust Ball Bearing 6x12x4.5mm
F6-12 Budget Single Thrust Ball Bearing 6x12x4.5mm
Regular price
£5.23
ex VAT£6.28inc. VAT
Regular price
Sale price
£5.23
ex VAT£6.28
inc. VAT
In stock
Price Break
10+
£4.65
19+
£4.39
29+
£4.34
39+
£4.29
49+
£4.24
74+
£4.18
99+
£3.92
199+
£3.87
249+
£3.82
499+
£3.77
999+
£3.66
Couldn't load pickup availability
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 12mm
- Width:
- 4.5mm
Technical
Technical
| d | 6mm (+/-0.008mm) |
|---|---|
| D | 12mm (+0/-0.011mm) |
| H | 4.5mm (+0/-0.075mm) |
| r1r2 min | 0.15mm |
| Dynamic load C | 0.38 kN |
| Static load Co | 0.3 kN |
| Weight | 0.0025 kg |
| Limiting Speed | 18000 rpm |
| Lubrication | Light Oil AF2 |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
