Major Brand F180H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 125mm / 5 inch
Major Brand F180H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 125mm / 5 inch
Regular price
£171.20
ex VAT£205.44inc. VAT
Regular price
£356.67
Sale price
£171.20
ex VAT£428.00£205.44
inc. VAT
Equivalent to: F180H-4535
In stock
Price Break
10+
£152.37
19+
£143.81
29+
£142.10
39+
£140.38
49+
£138.67
74+
£136.96
99+
£128.40
199+
£126.69
249+
£124.98
499+
£123.26
999+
£119.84
Couldn't load pickup availability
Share this product
Description
Description
Branded Drive Coupling Outer Tapered Locking Bush Type: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

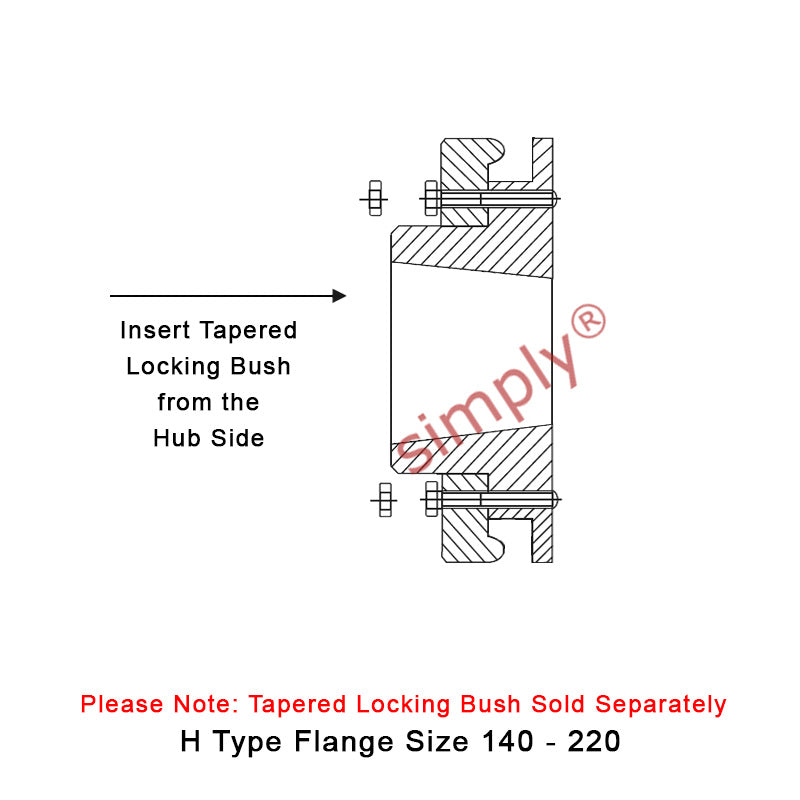

This coupling is the H type where the larger diameter of the taper bore is on the opposite side to the tyre clamping flange.
This is a half coupling. You require 2 x flanges and 1 x tyre to create a full coupling. Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.
Equivalent: F180H-4535
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 125mm or 5 inch
Technical
Technical
| H Type - Bush | 4535 <a href="advanced_search_result.php?keywords=taper+lock+bush+4535">[Click Here]</a> |
|---|---|
| H Type - Max Bore | 125mm |
| H Type - Max Bore | 5 inch |
| H Type - Flange A | 470mm |
| H Type - Flange B | 205mm |
| H Type - Flange C | 398mm |
| H Type - Flange E | 23mm |
| H Type - Flange G | 89mm |
| H Type - Flange F | 112mm |
| H Type - Flange D | 89mm |
| H Type - Flange Weight | 42.2kg |
| H Type - Inertia | 0.847kgm2 |
| H Type - Flange Face Spacing | 46mm |
| H Type - Gap Between Tyre Ends | 6mm |
| H Type - Nominal Torque | 6270 Nm |
| H Type - Max Speed | 1500 rev/min |
| H Type - Max Par Mis | 4.8mm |
| H Type - Max End Float | 6mm |
| H Type - Screw Size | M16 |
| H Type - Tigtening Torque | 105 Nm |
| Max Power at 100 rpm | 65.7 kW |
| Max Power at 200 rpm | 131 kW |
| Max Power at 300 rpm | 197 kW |
| Max Power at 400 rpm | 263 kW |
| Max Power at 500 rpm | 328 kW |
| Max Power at 600 rpm | 394 kW |
| Max Power at 700 rpm | 460 kW |
| Max Power at 720 rpm | 473 kW |
| Max Power at 800 rpm | 525 kW |
| Max Power at 900 rpm | 591 kW |
| Max Power at 960 rpm | 630 kW |
| Max Power at 1000 rpm | 657 kW |
| Max Power at 1200 rpm | 788 kW |
| Max Power at 1400 rpm | 919 kW |
| Max Power at 1440 rpm | 945 kW |
| Maximum Speed | 1500 rev/min |
| Nominal Torque | 6270 Nm TKN |
| Maximum Torque | 16455 Nm TK MAX |
| Torsional Stiffness | 1371 Nm/° |
| Max. Parallel Misalignment | 4.8mm |
| Maximum End Float | 6mm ± |
| Approximate Mass | 7.7kg |
| Alternating Torque | 2742 ± Nm @ 10Hz TKW |
| Resonance Factor V B | 7 |
| Damping Coefficient Ø | 0.9 |
