SKU: EXT207-23-SNR

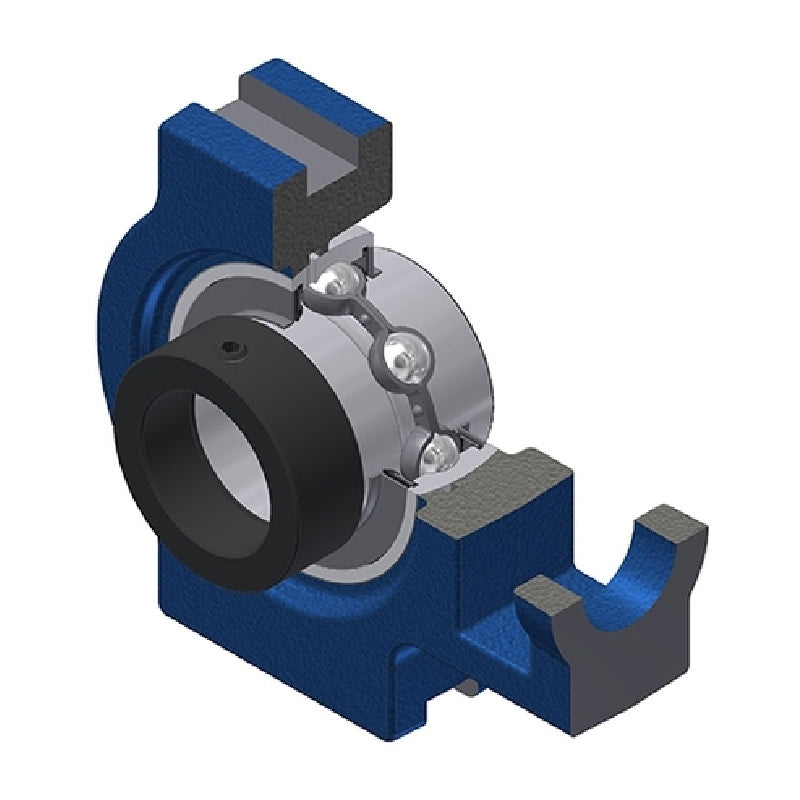

SNR EXT207-23 Imperial Cast Iron Take Up Unit with Eccentric Collar Insert 1-7/16 inch Bore - Allow 2-3 Days

SNR EXT207-23 Imperial Cast Iron Take Up Unit with Eccentric Collar Insert 1-7/16 inch Bore - Allow 2-3 Days
Regular price £55.35 ex VAT£66.42inc. VAT
Regular price Sale price £55.35 ex VAT£66.42 inc. VAT
Sale Sold out

In stock

Price Break
3+ £54.80
4+ £52.58
9+ £51.48
19+ £49.82
49+ £48.71
99+ £45.94
499+ £38.75
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 1-7/16 inch
A 37mm
A1 12mm
A2 30mm
B1 51.1mm
d1 51.1mm
H 102mm
H1 89mm
H2 64mm
L 129mm
L1 78mm
L2 13mm
L3 64mm
N 22mm
N1 16mm
N2 37mm
S 18.8mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 1.68 kg
