SKU: EXT205-SNR

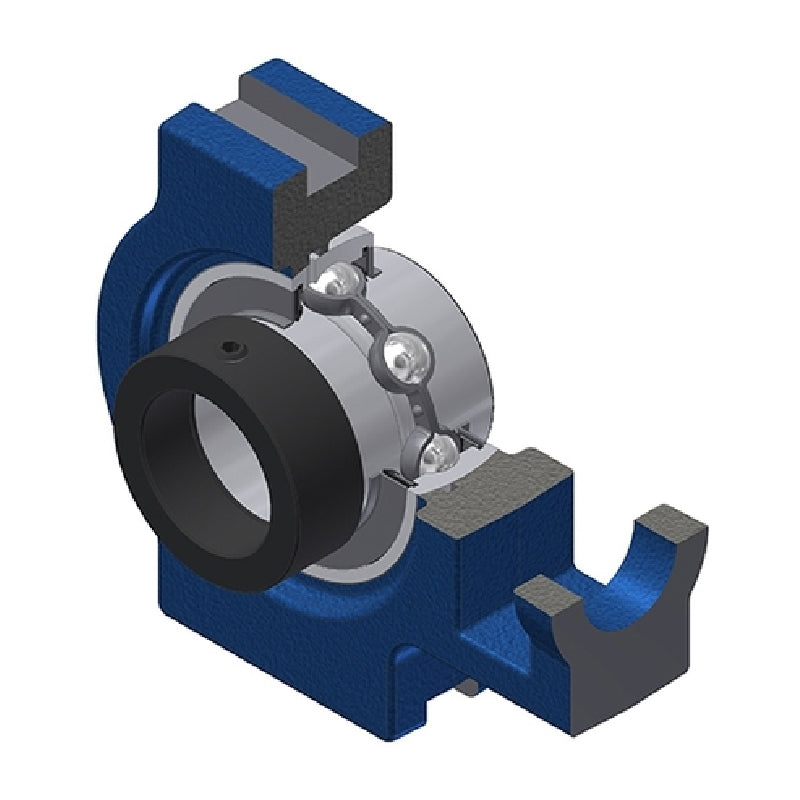

SNR EXT205 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
SNR EXT205 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
Regular price
£30.53
ex VAT£36.64inc. VAT
Regular price
Sale price
£30.53
ex VAT£36.64
inc. VAT
In stock
Price Break
3+
£27.17
4+
£25.64
9+
£25.34
19+
£25.03
49+
£24.73
99+
£24.42
499+
£22.90
999+
£22.59
1999+
£22.29
2999+
£21.98
4999+
£21.37
Share this product
Description
Description
EXT200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Style:
- EXT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 25mm |
| A | 32mm |
| A1 | 12mm |
| A2 | 24mm |
| B1 | 44.3mm |
| d1 | 37.4mm |
| H | 89mm |
| H1 | 76mm |
| H2 | 51mm |
| L | 97mm |
| L1 | 62mm |
| L2 | 10mm |
| L3 | 51mm |
| N | 19mm |
| N1 | 16mm |
| N2 | 32mm |
| S | 17.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.85 kg |
