SKU: EXSP203-SNR

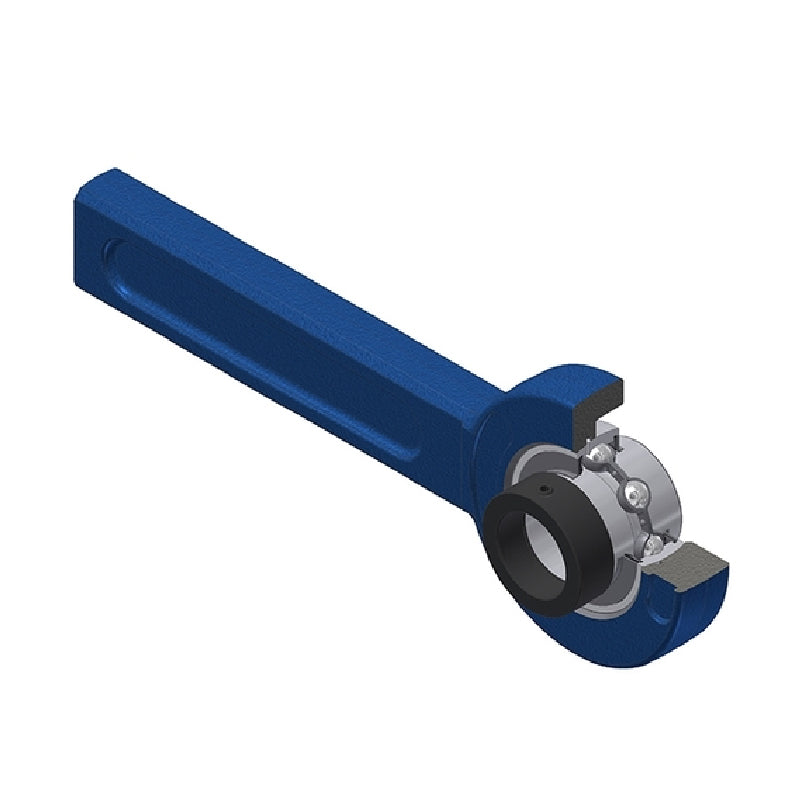

SNR EXSP203 Metric Cast Iron Tensioner Unit with 17mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXSP203 Metric Cast Iron Tensioner Unit with 17mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price £55.32 ex VAT£66.38inc. VAT
Regular price Sale price £55.32 ex VAT£66.38 inc. VAT
Sale Sold out

In stock

Price Break
3+ £54.77
4+ £52.55
9+ £51.45
19+ £49.79
49+ £48.68
99+ £45.92
499+ £38.72
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

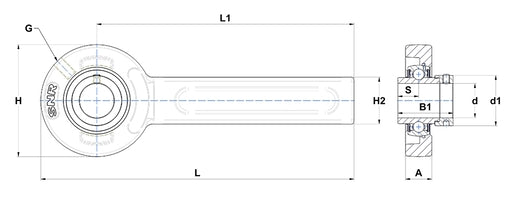

--- Dimensions
Shaft diameter 17mm
A 21mm
B1 43.5mm
d1 32.4mm
H 78mm
H2 41mm
L 264mm
L1 225mm
S 17mm
G R1/8″
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Stretcher frame 2 SPR11
Stretcher frame 3 SPR12
Stretcher frame 4 SPR14
Mass 1.65 kg
