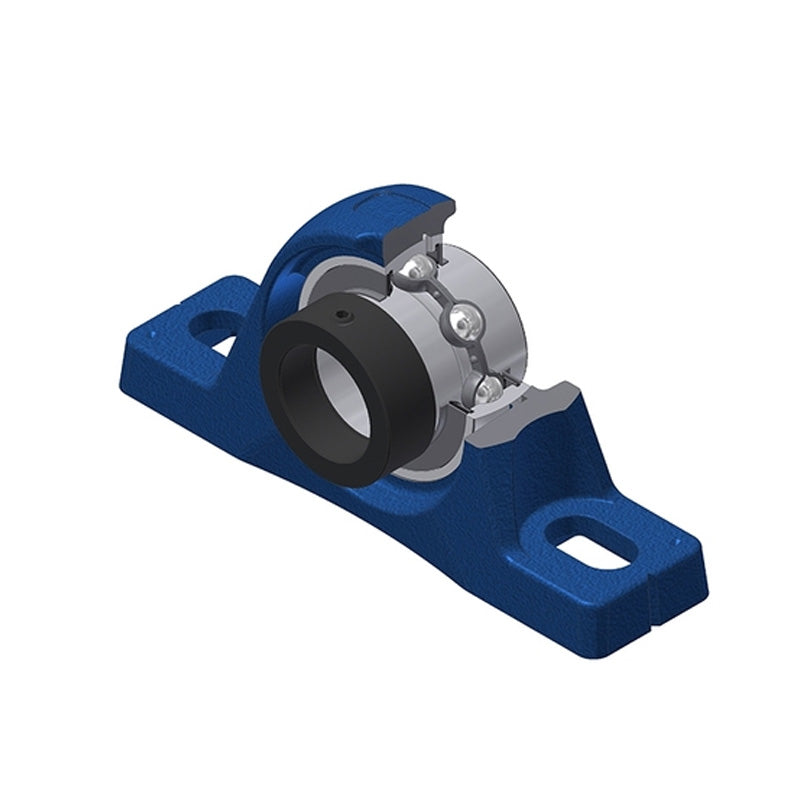

SNR EXPLE212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXPLE212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
Regular price £110.78 ex VAT£132.94inc. VAT
Regular price Sale price £110.78 ex VAT£132.94 inc. VAT
Sale Sold out

In stock

Price Break
3+ £109.67
4+ £105.24
9+ £103.03
19+ £99.70
49+ £97.49
99+ £91.95
499+ £77.55
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 60mm
A 79.4mm
A1 50.8mm
B 61.8mm
d1 82mm
H 68.3mm
H1 28.6mm
H2 138.1mm
J 193.7mm
L 245mm
N 18mm
N1 29.1mm
S 30.9mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 6.17 kg
