SKU: EXPH210N-SNR

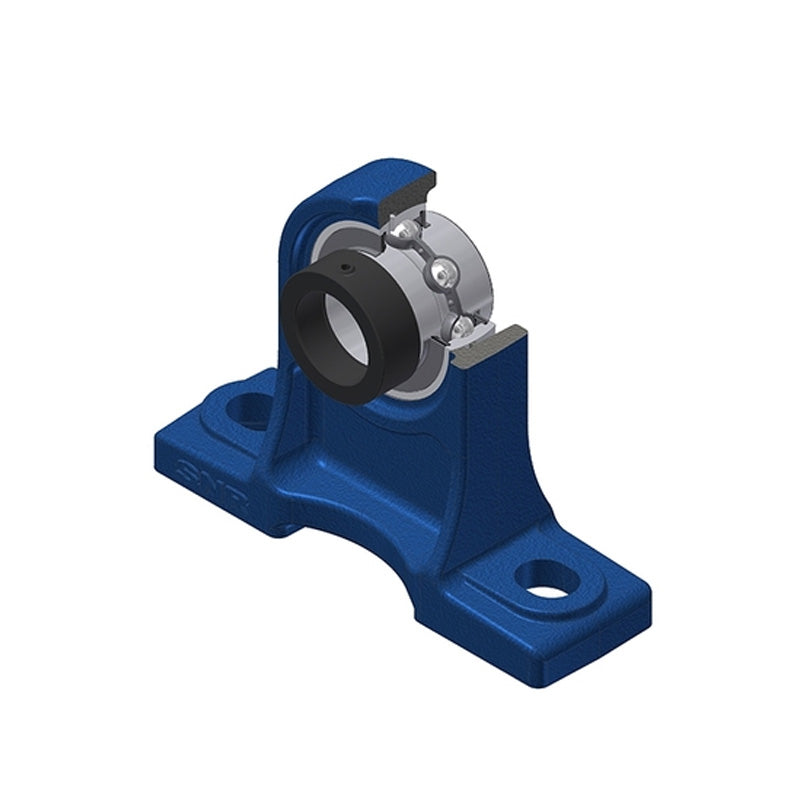

SNR EXPH210N Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXPH210N Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price £88.59 ex VAT£106.31inc. VAT
Regular price Sale price £88.59 ex VAT£106.31 inc. VAT
Sale Sold out

In stock

Price Break
3+ £87.70
4+ £84.16
9+ £82.39
19+ £79.73
49+ £77.96
99+ £73.53
499+ £62.01
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 50mm
A 70mm
A1 36mm
B 49.2mm
d1 67.2mm
H 110mm
H1 22mm
H2 165mm
J 159mm
L 206mm
L1 65mm
N 20mm
N1 25mm
S 24.6mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 3.71 kg
