SKU: EXPG201-SNR

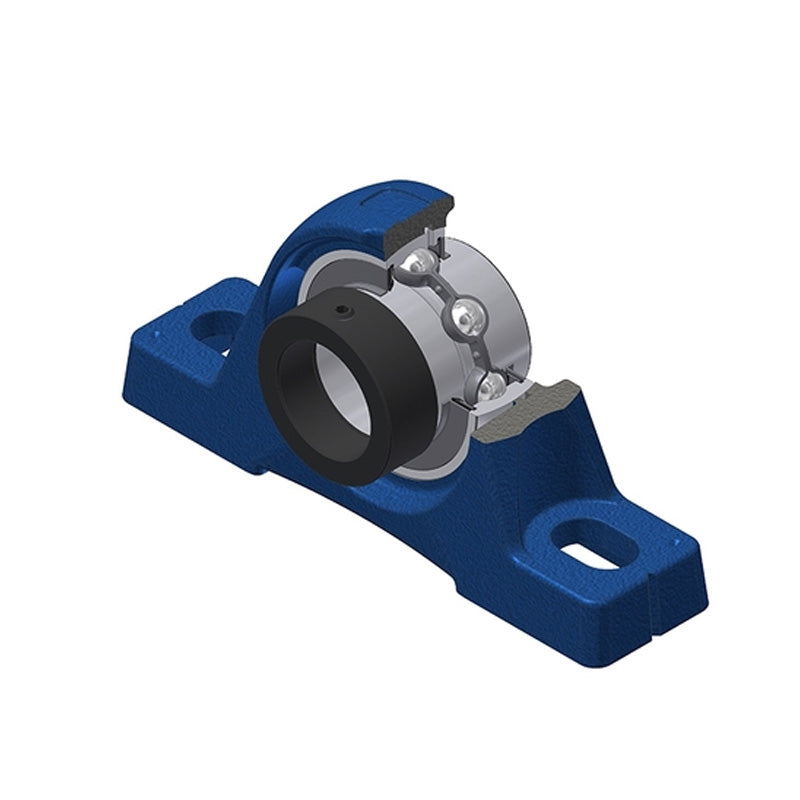

SNR EXPG201 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 12mm Bore - Allow 2-3 Days
SNR EXPG201 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 12mm Bore - Allow 2-3 Days
Regular price
£30.99
ex VAT£37.19inc. VAT
Regular price
Sale price
£30.99
ex VAT£37.19
inc. VAT
In stock
Price Break
3+
£30.68
4+
£29.44
9+
£28.82
19+
£27.89
49+
£27.27
99+
£25.72
499+
£21.69
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
EXPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 12mm
- Style:
- EXPG
- Bolt Hole Centres:
- 49mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 12mm |
| A | 38mm |
| A1 | 20mm |
| B | 34mm |
| d1 | 32.4mm |
| E | 16mm |
| H | 33.3mm |
| H1 | 14mm |
| H2 | 64mm |
| J | 49mm |
| L | 70mm |
| L1 | 21mm |
| N | M8 |
| S | 17mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.69 kg |
