SKU: EXPA211-SNR

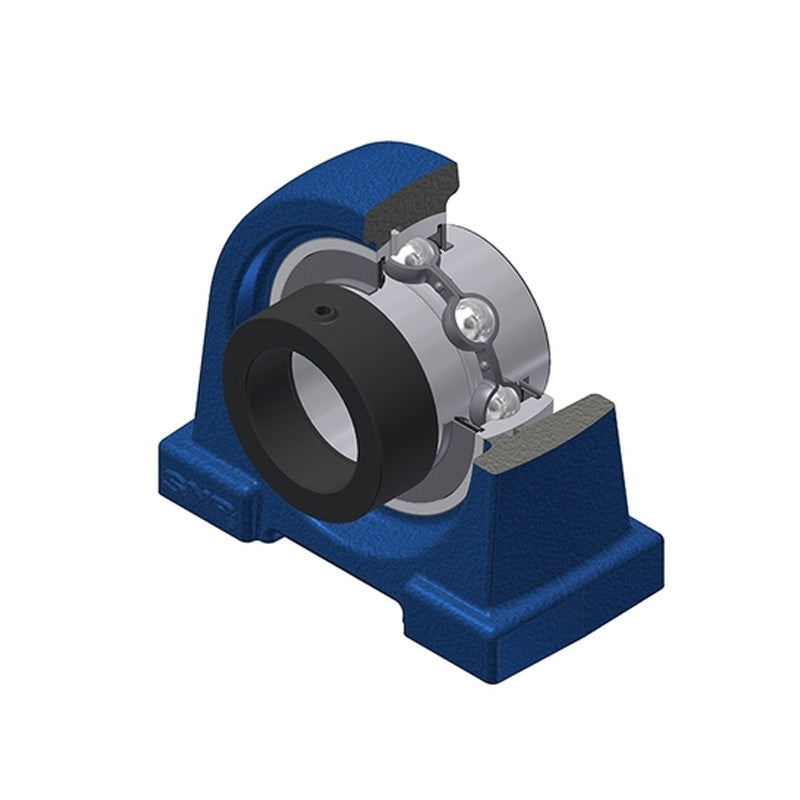

SNR EXPA211 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days

Name: SNR EXPA211 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days
Brand: SNR
SKU: EXPA211-SNR
Price: 88.64 GBP
Availability: InStock

£88.64 ex VAT£106.37inc. VAT

£88.64 ex VAT£106.37 inc. VAT

Sale Sold out

In stock

Price Break

3+ £87.75

4+ £84.21

9+ £82.44

19+ £79.78

49+ £78.00

99+ £73.57

499+ £62.05

999+ £0.00

1999+ £0.00

2999+ £0.00

4999+ £0.00

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SNR - High Quality
Inside Diameter:: 55mm
Style:: EXPA
Bolt Hole Centres:: 104mm

Technical

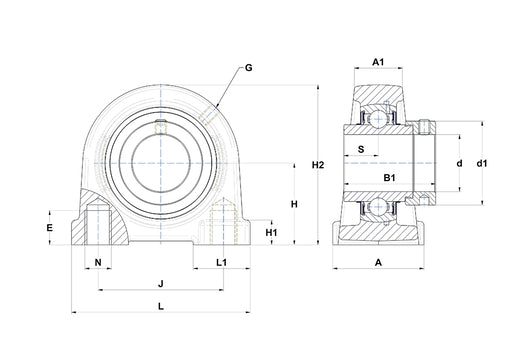

---	Dimensions
Shaft diameter	55mm
A	66mm
A1	33mm
B	55.4mm
d1	74.5mm
E	25mm
H	63.5mm
H1	14mm
H2	125mm
J	104mm
L	140mm
L1	47mm
N	M16
S	27.7mm
G	M6x1
---	Load rating
Dynamic load C	43.55 kN
Static load C0	29.2 kN
Operating temperature min.	-20°C
Operating temperature max.	100°C
---	Unit information
Recommended tightening torque for set screw	22 Nm
Mass	3.49 kg
