SKU: EXP212-SNR

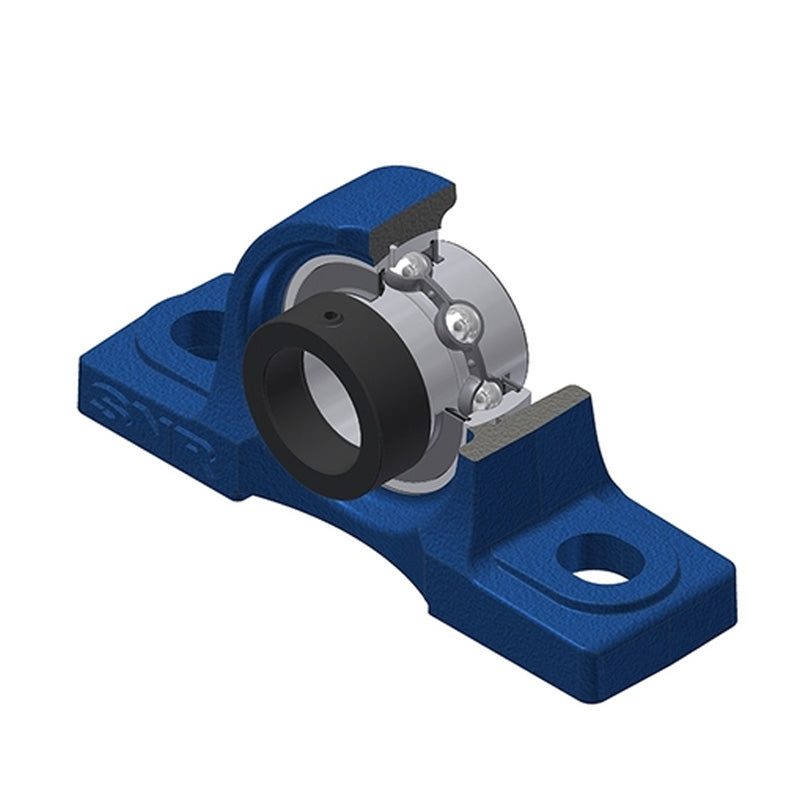

SNR EXP212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXP212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
Regular price £76.37 ex VAT£91.64inc. VAT
Regular price Sale price £76.37 ex VAT£91.64 inc. VAT
Sale Sold out

In stock

Price Break
3+ £67.97
4+ £64.15
9+ £63.38
19+ £62.62
49+ £61.86
99+ £61.09
499+ £57.28
999+ £56.51
1999+ £55.75
2999+ £54.98
4999+ £53.46
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 60mm
A 70mm
A1 44mm
B 61.8mm
d1 82mm
H 69.8mm
H1 25mm
H2 138mm
J 184mm
L 241mm
L1 70mm
N 20mm
N1 25mm
S 30.9mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 5.37 kg
