SKU: EXP208-SNR

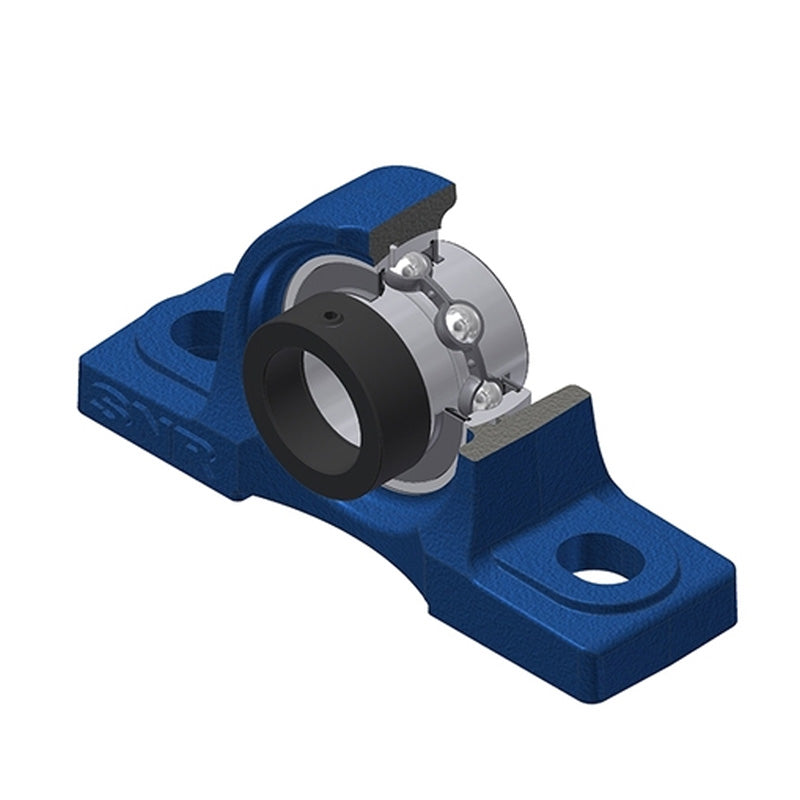

SNR EXP208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXP208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
£42.41
ex VAT£50.89inc. VAT
Regular price
Sale price
£42.41
ex VAT£50.89
inc. VAT
In stock
Price Break
10+
£37.74
19+
£35.62
29+
£35.20
39+
£34.78
49+
£34.35
74+
£33.93
99+
£31.81
199+
£31.38
249+
£30.96
499+
£30.54
999+
£29.69
Couldn't load pickup availability
Description
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- EXP
- Bolt Hole Centres:
- 137mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 54mm |
| A1 | 34mm |
| B | 42.8mm |
| d1 | 58mm |
| H | 49.2mm |
| H1 | 19mm |
| H2 | 100mm |
| J | 137mm |
| L | 184mm |
| L1 | 52mm |
| N | 17mm |
| N1 | 23mm |
| S | 21.4mm |
| Dz | mm |
| Z | mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.28 kg |
