SKU: EXFLZ207-SNR

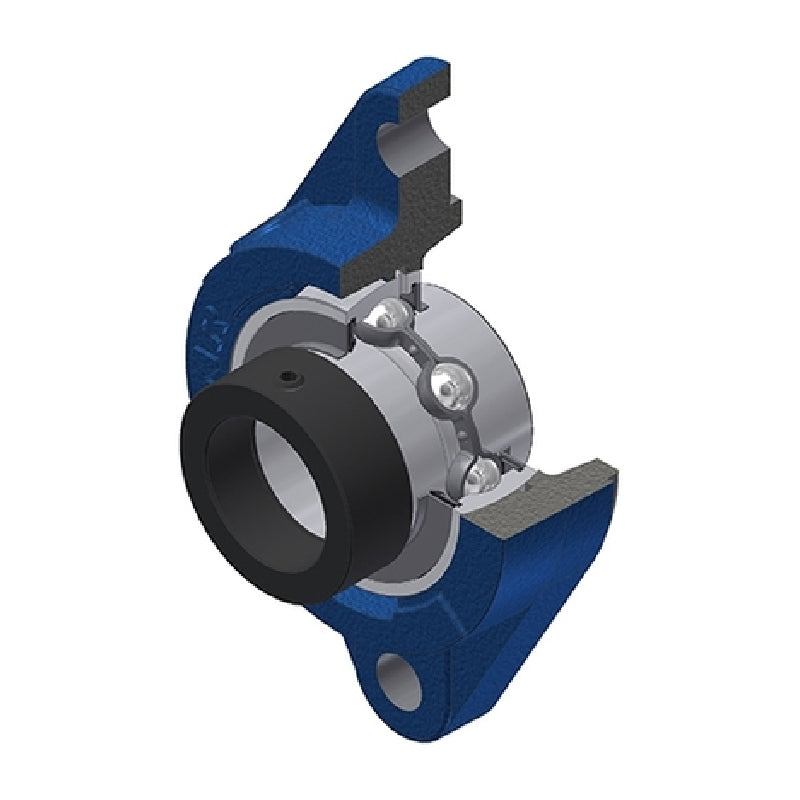

SNR EXFLZ207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFLZ207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
£40.48
ex VAT£48.58inc. VAT
Regular price
Sale price
£40.48
ex VAT£48.58
inc. VAT
In stock
Price Break
10+
£36.03
19+
£34.00
29+
£33.60
39+
£33.19
49+
£32.79
74+
£32.38
99+
£30.36
199+
£29.96
249+
£29.55
499+
£29.15
999+
£28.34
Couldn't load pickup availability
Description
Description
EXFLZ200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- EXFLZ
- Bolt Hole Centres:
- 130mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 32.5mm |
| A1 | 12.5mm |
| A2 | 49.3mm |
| A4 | 28.5mm |
| B | 37.6mm |
| B1 | 51.1mm |
| d1 | 51.1mm |
| e | 17mm |
| H | 155mm |
| H3 | 90mm |
| J | 130mm |
| L | 94mm |
| N | 14mm |
| S | 18.8mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.4 kg |
