SKU: EXFLE206N-SNR

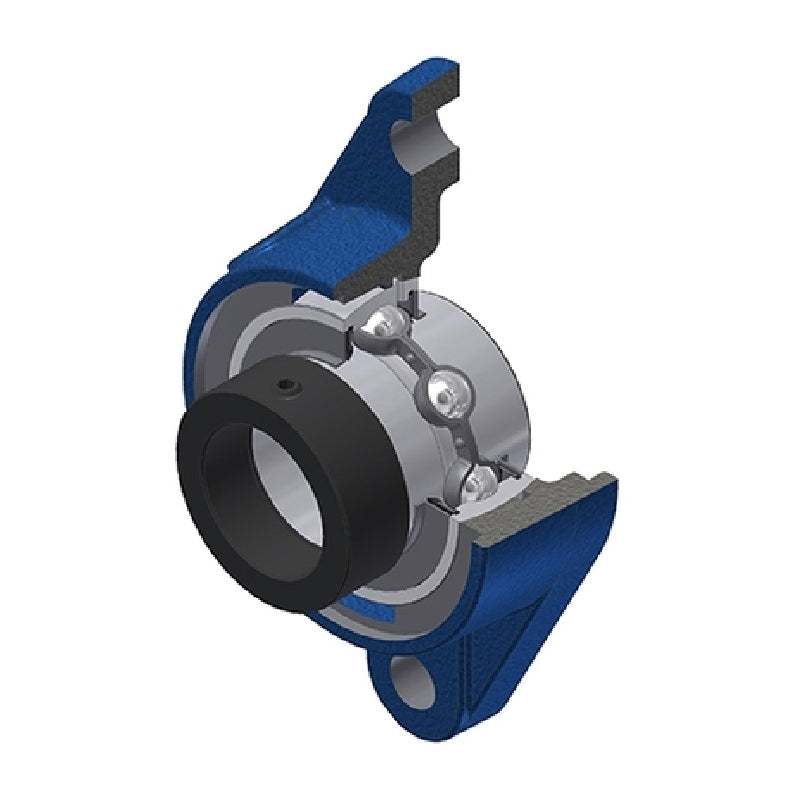

SNR EXFLE206N Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXFLE206N Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price £55.37 ex VAT£66.44inc. VAT
Regular price Sale price £55.37 ex VAT£66.44 inc. VAT
Sale Sold out

In stock

Price Break
3+ £54.82
4+ £52.60
9+ £51.49
19+ £49.83
49+ £48.73
99+ £45.96
499+ £38.76
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 30mm
A 32.1mm
A1 12mm
A2 50.1mm
B 36.4mm
B1 48.3mm
d1 44.1mm
e 20mm
H 142mm
J 116.5mm
L 80mm
N 11.5mm
S 18.2mm
G R1/8″
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 0.91 kg
