SKU: EXFE210T04-SNR

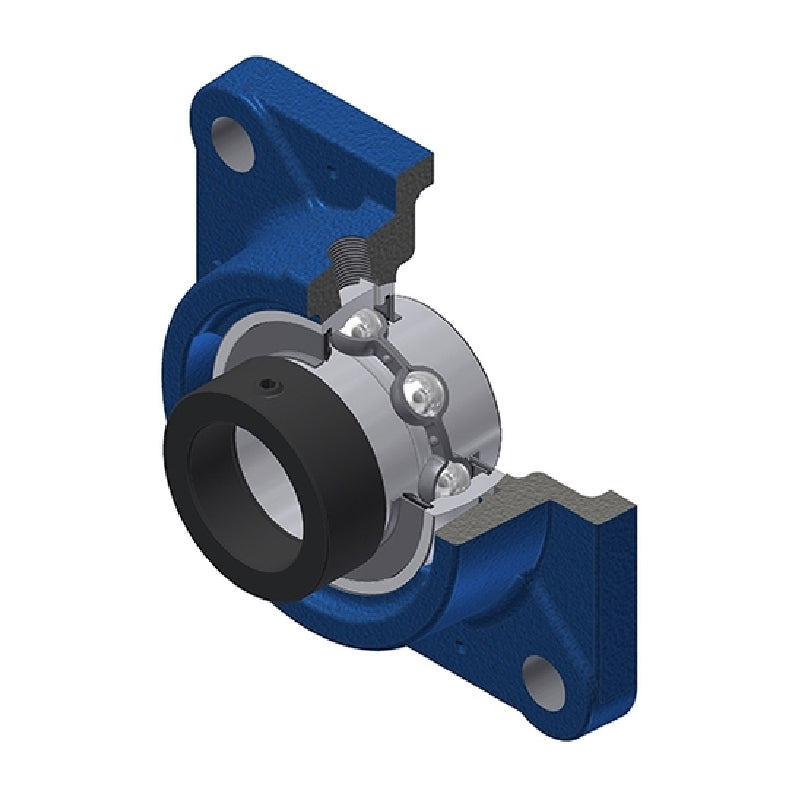

SNR EXFE210T04 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Eccentric Collar Insert Low Temperature Version - Allow 2-3 Days

SNR EXFE210T04 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Eccentric Collar Insert Low Temperature Version - Allow 2-3 Days
Regular price £155.04 ex VAT£186.05inc. VAT
Regular price Sale price £155.04 ex VAT£186.05 inc. VAT
Sale Sold out

In stock

Price Break
3+ £153.49
4+ £147.29
9+ £144.19
19+ £139.54
49+ £136.44
99+ £128.68
499+ £108.53
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 50mm
A 44mm
A1 13mm
A2 66.1mm
B 49.2mm
B1 62.7mm
d1 67.2mm
e 28mm
J 111mm
L 143mm
N 18mm
S 24.6mm
G R1/8″
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -40°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.77 kg
