SKU: EXFE207L3-SNR

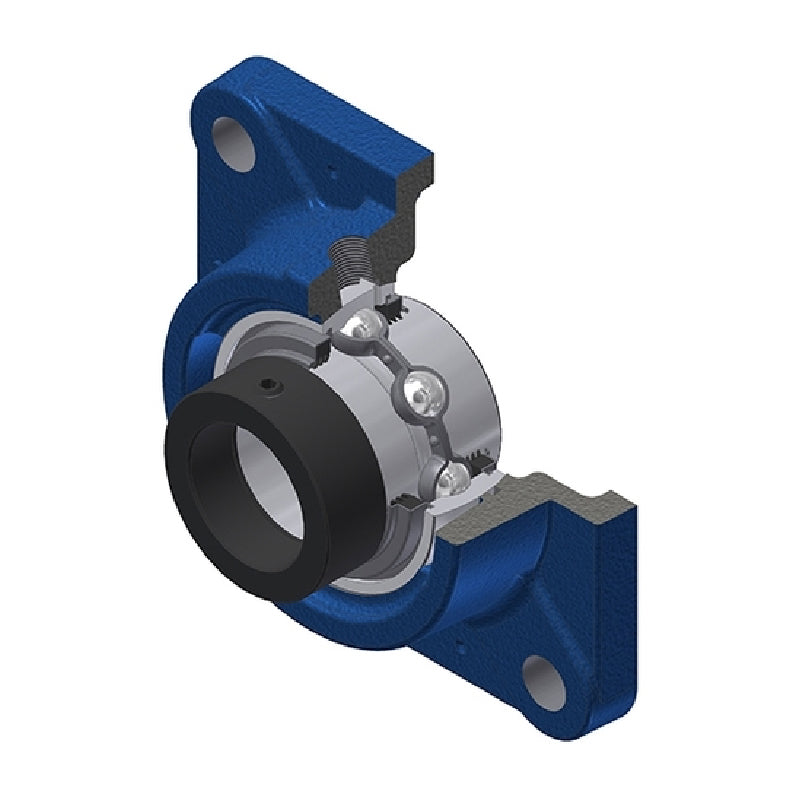

SNR EXFE207L3 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Eccentric Collar Insert with Triple Lip Seal - Allow 2-3 Days

SNR EXFE207L3 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Eccentric Collar Insert with Triple Lip Seal - Allow 2-3 Days
Regular price £55.32 ex VAT£66.38inc. VAT
Regular price Sale price £55.32 ex VAT£66.38 inc. VAT
Sale Sold out

In stock

Price Break
3+ £54.77
4+ £52.55
9+ £51.45
19+ £49.79
49+ £48.68
99+ £45.92
499+ £38.72
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 35mm
A 36mm
A1 12.5mm
A2 53.3mm
B 37.6mm
B1 51.1mm
d1 51.1mm
e 21mm
J 92mm
L 118mm
N 14mm
S 18.8mm
G R1/8″
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.7 kg
