SKU: EXFCE211-SNR

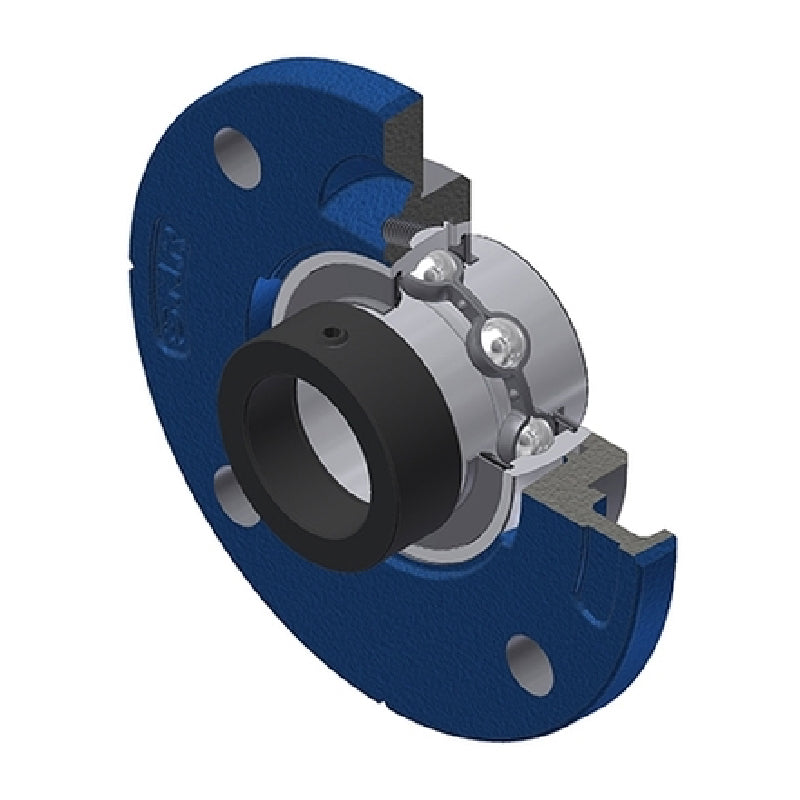

SNR EXFCE211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXFCE211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
£65.38
ex VAT£78.46inc. VAT
Regular price
Sale price
£65.38
ex VAT£78.46
inc. VAT
In stock
Price Break
3+
£58.19
4+
£54.92
9+
£54.27
19+
£53.61
49+
£52.96
99+
£52.31
499+
£49.04
999+
£48.38
1999+
£47.73
2999+
£47.08
4999+
£45.77
Share this product
Description
Description
EXFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- EXFCE
- Pitch Circle Diameter:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| A | 27.5mm |
| A1 | 15mm |
| A2 | 43.6mm |
| A3 | 3mm |
| B | 55.4mm |
| B1 | 71.3mm |
| d1 | 74.5mm |
| H3 | 125mm |
| J | 150mm |
| L | 185mm |
| N | 18mm |
| S | 27.7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.4 kg |
