SKU: EXFC218-SNR

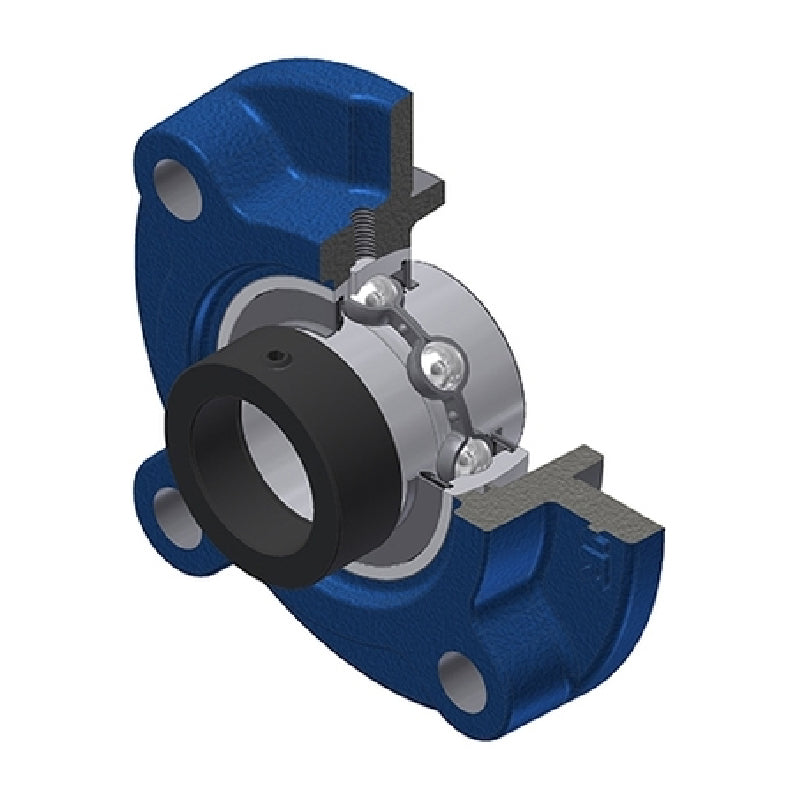

SNR EXFC218 Metric Four Bolt Cast Iron Round Flanged Housing with 90mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXFC218 Metric Four Bolt Cast Iron Round Flanged Housing with 90mm Eccentric Collar Insert - Allow 2-3 Days
Regular price £276.43 ex VAT£331.72inc. VAT
Regular price Sale price £276.43 ex VAT£331.72 inc. VAT
Sale Sold out

In stock

Price Break
3+ £246.02
4+ £232.20
9+ £229.44
19+ £226.67
49+ £223.91
99+ £221.14
499+ £207.32
999+ £204.56
1999+ £201.79
2999+ £199.03
4999+ £193.50
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

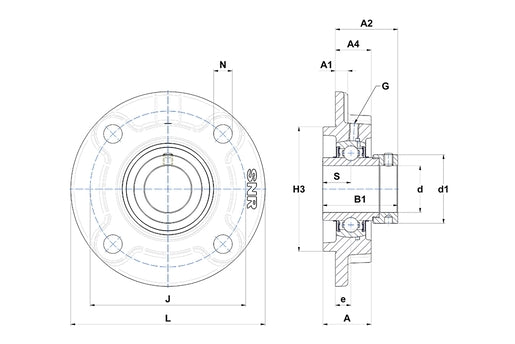

--- Dimensions
Shaft diameter d 90mm
A 68mm
A1 20mm
A2 70mm
A4 50mm
B 55mm
B1 72.5mm
d1 120mm
e 22mm
H3 190mm
J 220mm
L 265mm
N 23mm
S 24.5mm
G M10x1
--- Load rating
Dynamic load C 96 kN
Static load C0 71.5 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 13.52 kg
