SKU: EXFC210-SNR

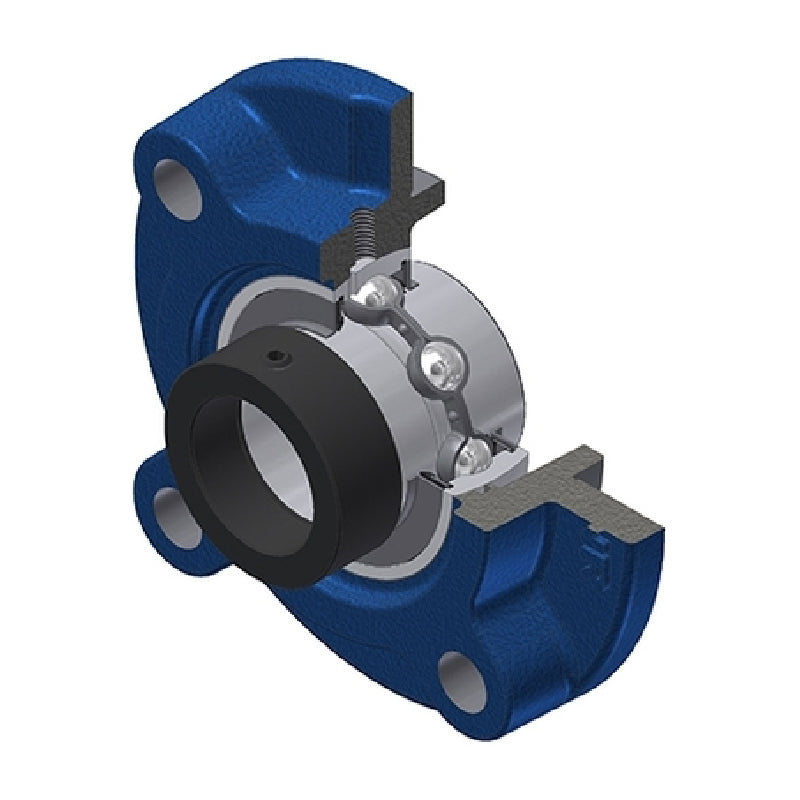

SNR EXFC210 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXFC210 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
Regular price £54.78 ex VAT£65.74inc. VAT
Regular price Sale price £54.78 ex VAT£65.74 inc. VAT
Sale Sold out

In stock

Price Break
3+ £48.76
4+ £46.02
9+ £45.47
19+ £44.92
49+ £44.38
99+ £43.83
499+ £41.09
999+ £40.54
1999+ £39.99
2999+ £39.44
4999+ £38.35
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 50mm
A 40mm
A1 14mm
A2 48.1mm
A4 28mm
B 49.2mm
B1 62.7mm
d1 67.2mm
e 10mm
H3 110mm
J 138mm
L 165mm
N 16mm
S 24.6mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 3.05 kg
