SKU: EXFC207N-SNR

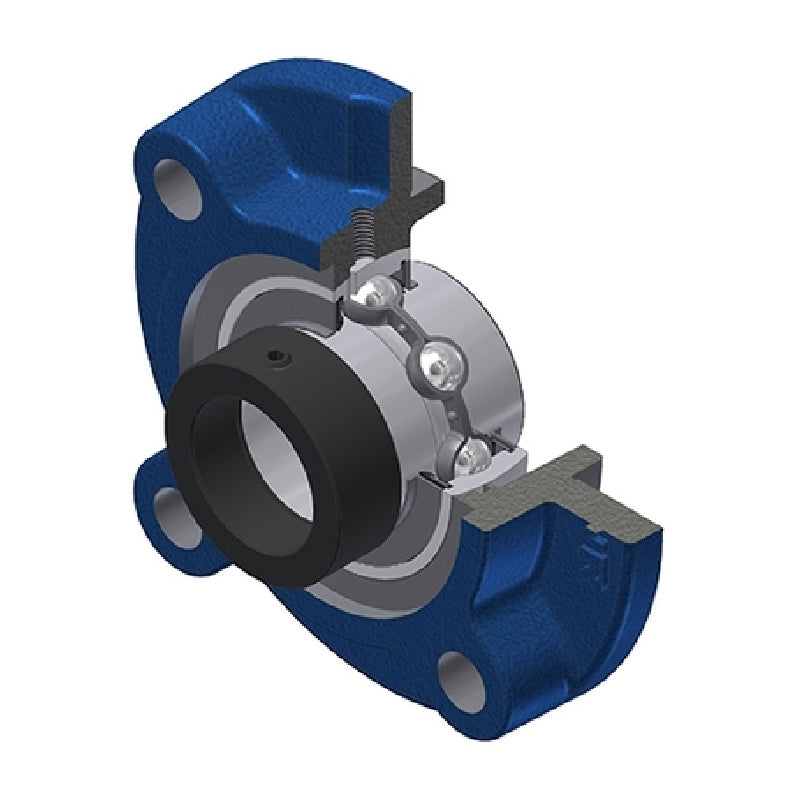

SNR EXFC207N Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXFC207N Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
Regular price £55.42 ex VAT£66.50inc. VAT
Regular price Sale price £55.42 ex VAT£66.50 inc. VAT
Sale Sold out

In stock

Price Break
3+ £54.87
4+ £52.65
9+ £51.54
19+ £49.88
49+ £48.77
99+ £46.00
499+ £38.79
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 35mm
A 34mm
A1 9mm
A2 43.3mm
A4 26mm
B 37.6mm
B1 51.1mm
d1 51.1mm
e 11mm
H3 90mm
J 110mm
L 135mm
N 14mm
S 18.8mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.77 kg
