SKU: EXF320-SNR

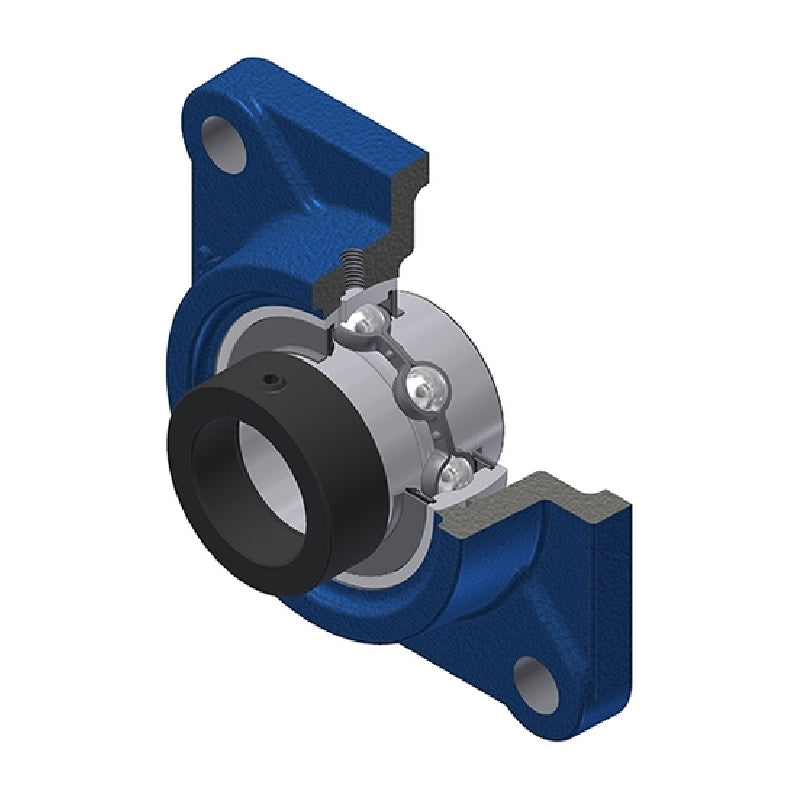

SNR EXF320 Metric Four Bolt Square Cast Iron Flange Housing with 100mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXF320 Metric Four Bolt Square Cast Iron Flange Housing with 100mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
£604.06
ex VAT£724.87inc. VAT
Regular price
Sale price
£604.06
ex VAT£724.87
inc. VAT
In stock
Price Break
3+
£573.86
4+
£543.65
9+
£513.45
19+
£483.25
49+
£471.17
99+
£459.09
499+
£398.68
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 100mm
- Style:
- EXF
- Bolt Hole Centres:
- 242mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 100mm |
| A | 94mm |
| A1 | 32mm |
| A2 | 137.6mm |
| B | 100mm |
| B1 | 128.6mm |
| d1 | 146mm |
| e | 59mm |
| J | 242mm |
| L | 310mm |
| N | 38mm |
| S | 50mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 171.6 kN |
| Static load C0 | 140 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 120 Nm |
| Mass | 27.4 kg |
