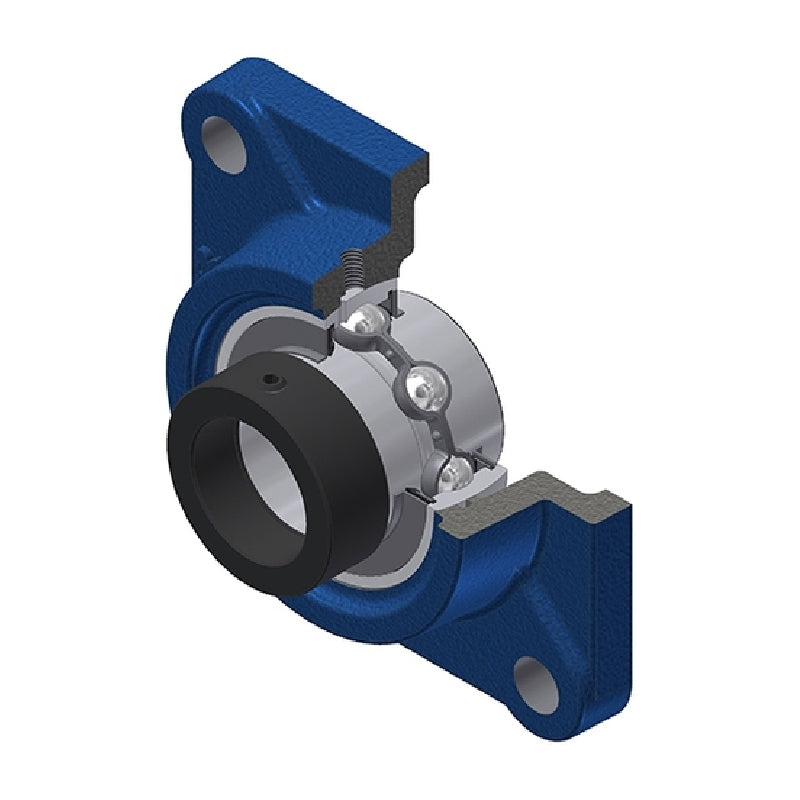

SNR EXF316 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXF316 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
£443.04
ex VAT£531.65inc. VAT
Regular price
Sale price
£443.04
ex VAT£531.65
inc. VAT
In stock
Price Break
3+
£438.61
4+
£420.89
9+
£412.03
19+
£398.74
49+
£389.88
99+
£367.72
499+
£310.13
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- EXF
- Bolt Hole Centres:
- 196mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 80mm |
| A | 68mm |
| A1 | 27mm |
| A2 | 103.9mm |
| B | 81mm |
| B1 | 106.4mm |
| d1 | 119mm |
| e | 38mm |
| J | 196mm |
| L | 250mm |
| N | 31mm |
| S | 40.5mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 122.85 kN |
| Static load C0 | 86.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 64 Nm |
| Mass | 13.79 kg |
