SKU: EXF215-SNR

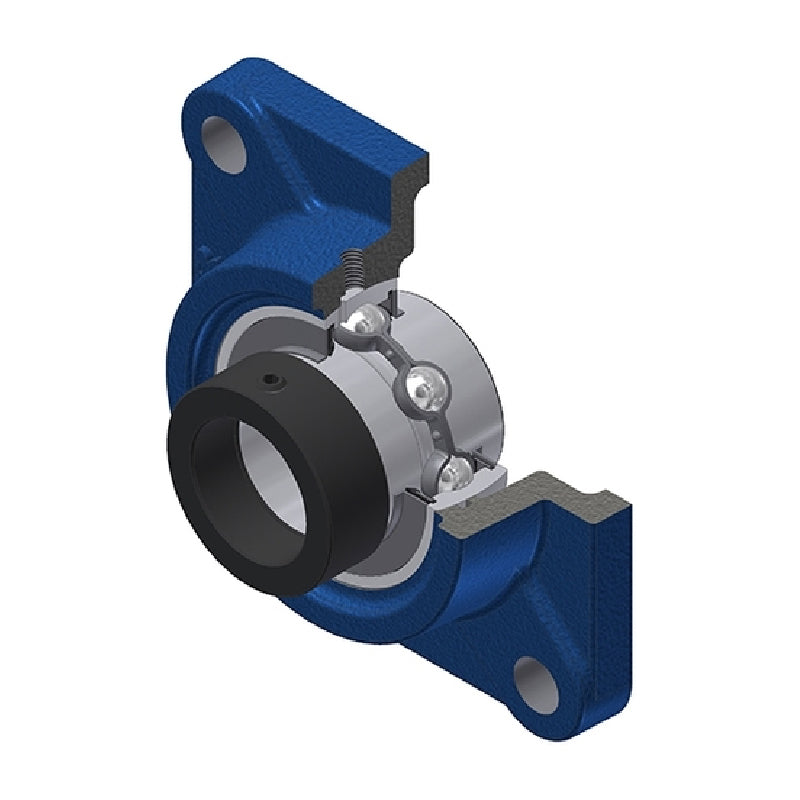

SNR EXF215 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXF215 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
£221.59
ex VAT£265.91inc. VAT
Regular price
Sale price
£221.59
ex VAT£265.91
inc. VAT
In stock
Price Break
3+
£219.37
4+
£210.51
9+
£206.08
19+
£199.43
49+
£195.00
99+
£183.92
499+
£155.11
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 75mm
- Style:
- EXF
- Bolt Hole Centres:
- 159mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 75mm |
| A | 56mm |
| A1 | 22mm |
| A2 | 88.8mm |
| B | 74.6mm |
| B1 | 92.1mm |
| d1 | 102mm |
| e | 34mm |
| J | 159mm |
| L | 200mm |
| N | 19mm |
| S | 37.3mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 66 kN |
| Static load C0 | 49.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 6.37 kg |
