SKU: EXC309-SNR
SNR EXC309 Metric Cast Iron Cartridge Unit with 45mm Bore Insert 38mm Outside Dia - Allow 2-3 Days
SNR EXC309 Metric Cast Iron Cartridge Unit with 45mm Bore Insert 38mm Outside Dia - Allow 2-3 Days
Regular price
£110.77
ex VAT£132.92inc. VAT
Regular price
Sale price
£110.77
ex VAT£132.92
inc. VAT
In stock
Price Break
5+
£109.66
10+
£105.23
20+
£103.02
50+
£99.69
100+
£97.48
500+
£91.94
1000+
£77.54
Couldn't load pickup availability
Description
Description

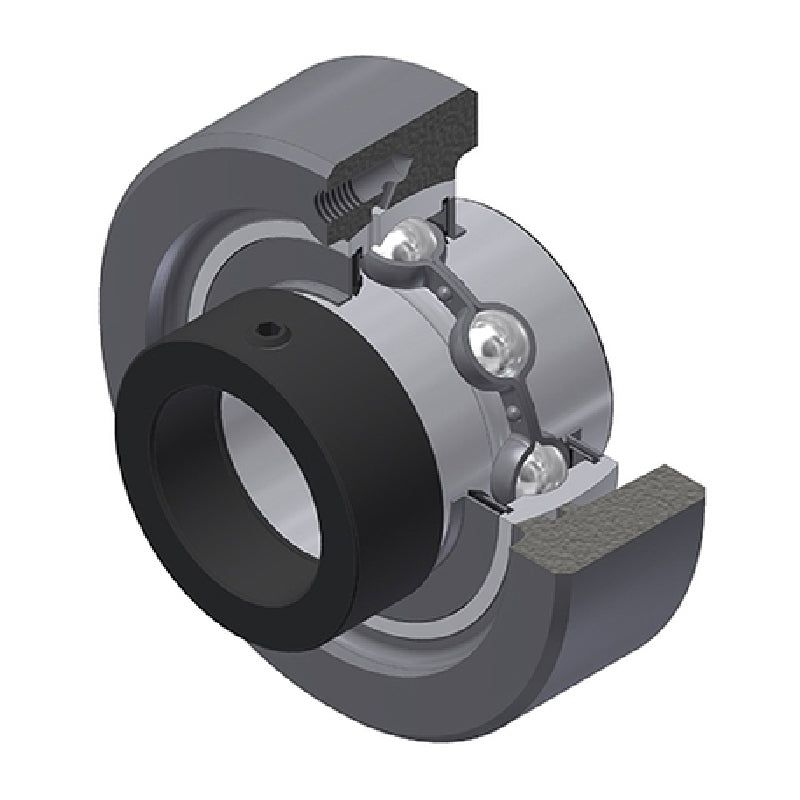

EXC300 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 38mm |
| A3 | 2.5mm |
| B1 | 58.7mm |
| d1 | 70mm |
| H | 130mm |
| S | 19.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 53 kN |
| Static load C0 | 31.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.85 kg |
