SKU: ESPH210-SNR

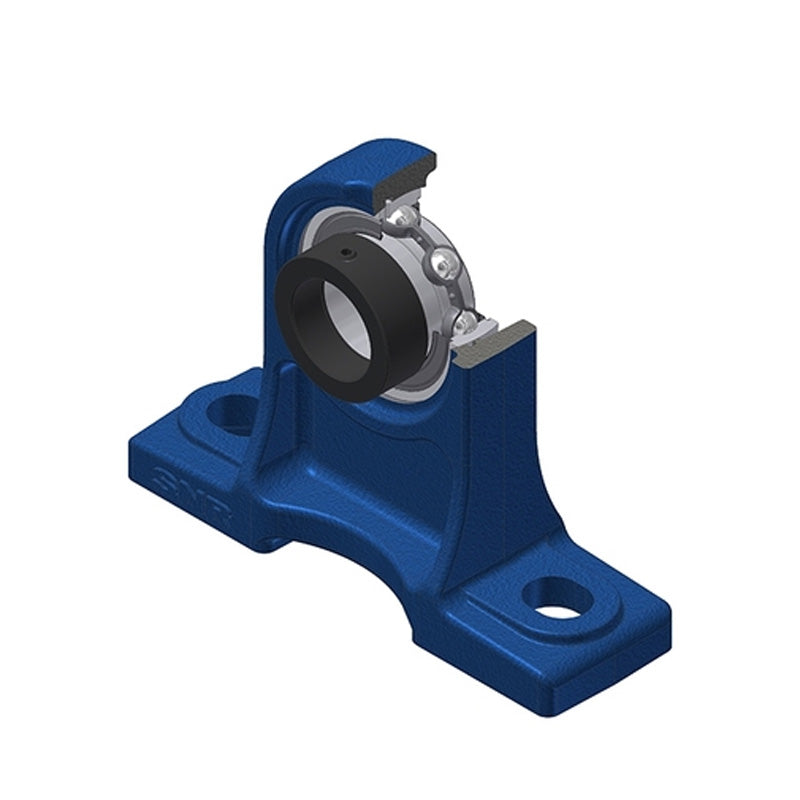

SNR ESPH210 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESPH210 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price £66.46 ex VAT£79.75inc. VAT
Regular price Sale price £66.46 ex VAT£79.75 inc. VAT
Sale Sold out

In stock

Price Break
3+ £65.80
4+ £63.14
9+ £61.81
19+ £59.81
49+ £58.48
99+ £55.16
499+ £46.52
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

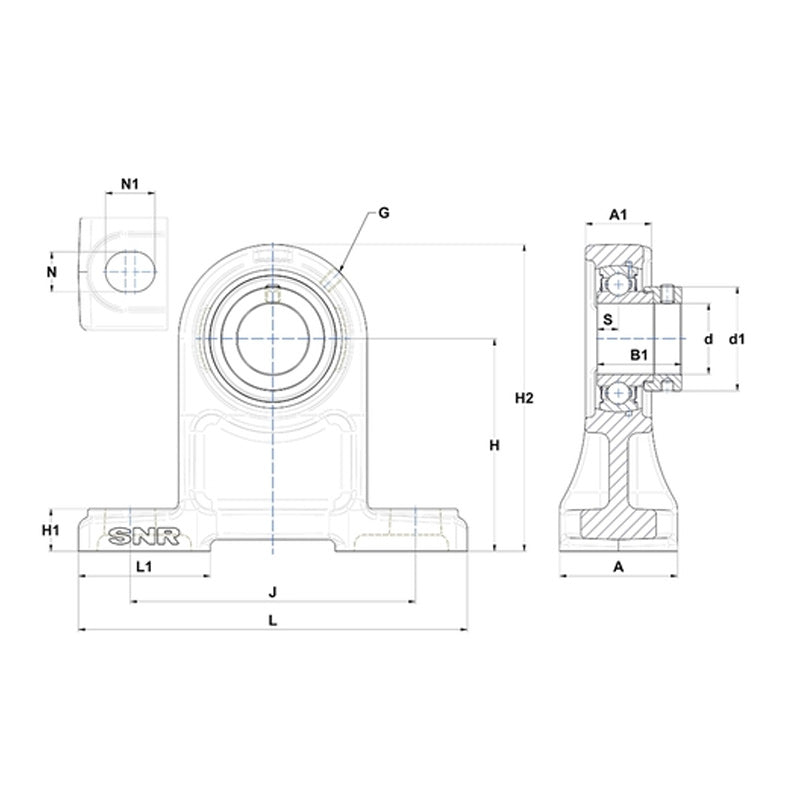

--- Dimensions
Shaft diameter d 50mm
A 70mm
A1 36mm
B 30.2mm
d1 67.2mm
H 110mm
H1 22mm
H2 165mm
J 159mm
L 206mm
L1 65mm
N 20mm
N1 25mm
S 11mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 3.6 kg
