SKU: ESPH207-SNR

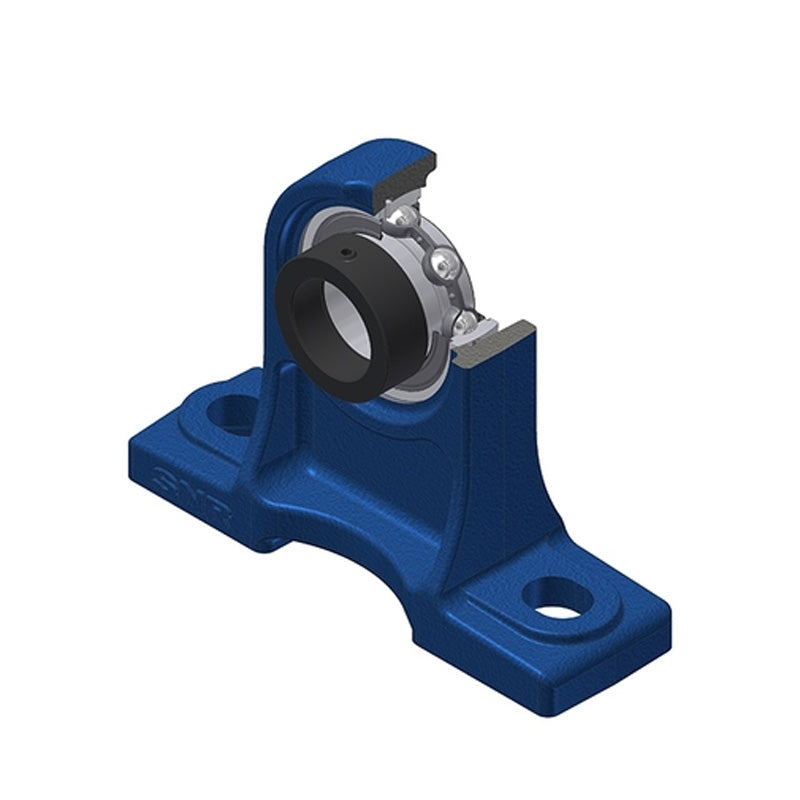

SNR ESPH207 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESPH207 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price £39.89 ex VAT£47.87inc. VAT
Regular price Sale price £39.89 ex VAT£47.87 inc. VAT
Sale Sold out

In stock

Price Break
3+ £39.49
4+ £37.90
9+ £37.10
19+ £35.90
49+ £35.10
99+ £33.11
499+ £27.92
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

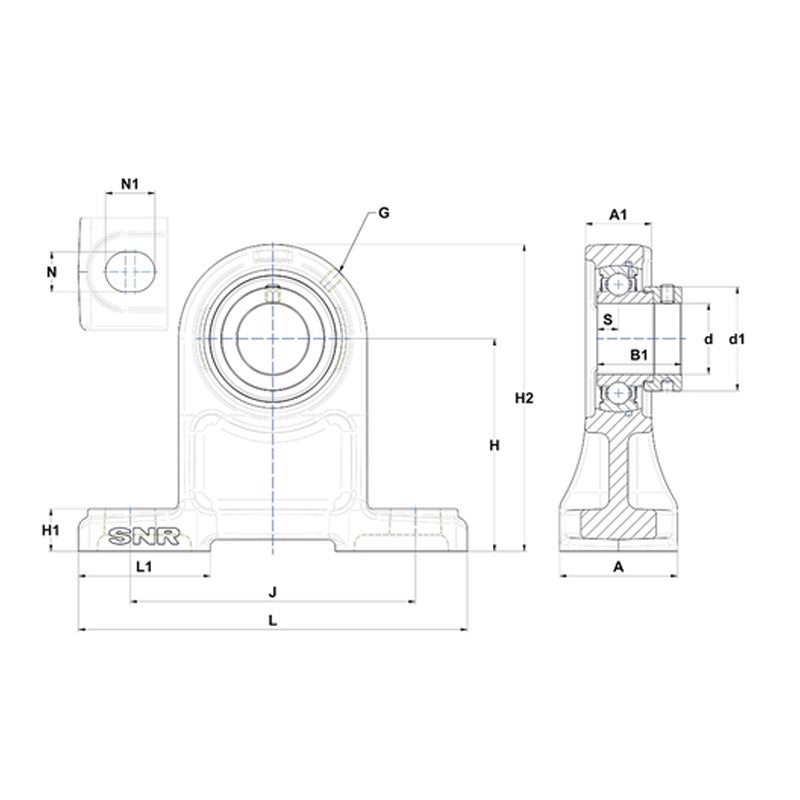

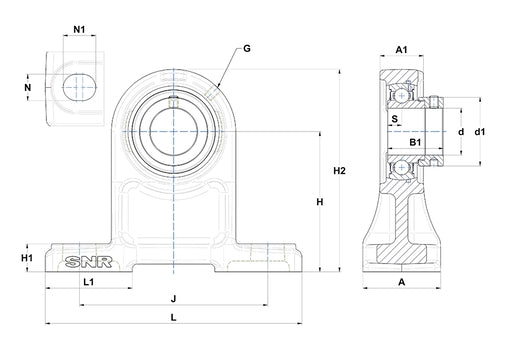

--- Dimensions
Shaft diameter d 35mm
A 60mm
A1 30mm
B 25.4mm
d1 51.1mm
H 95mm
H1 19mm
H2 140mm
J 127mm
L 167mm
L1 56mm
N 17mm
N1 21mm
S 9.5mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.3 kg
