SKU: ESPG202-SNR
SNR ESPG202 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 15mm Bore - Allow 2-3 Days
SNR ESPG202 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 15mm Bore - Allow 2-3 Days
Regular price
£39.90
ex VAT£47.88inc. VAT
Regular price
Sale price
£39.90
ex VAT£47.88
inc. VAT
In stock
Price Break
3+
£39.50
4+
£37.91
9+
£37.11
19+
£35.91
49+
£35.11
99+
£33.12
499+
£27.93
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|

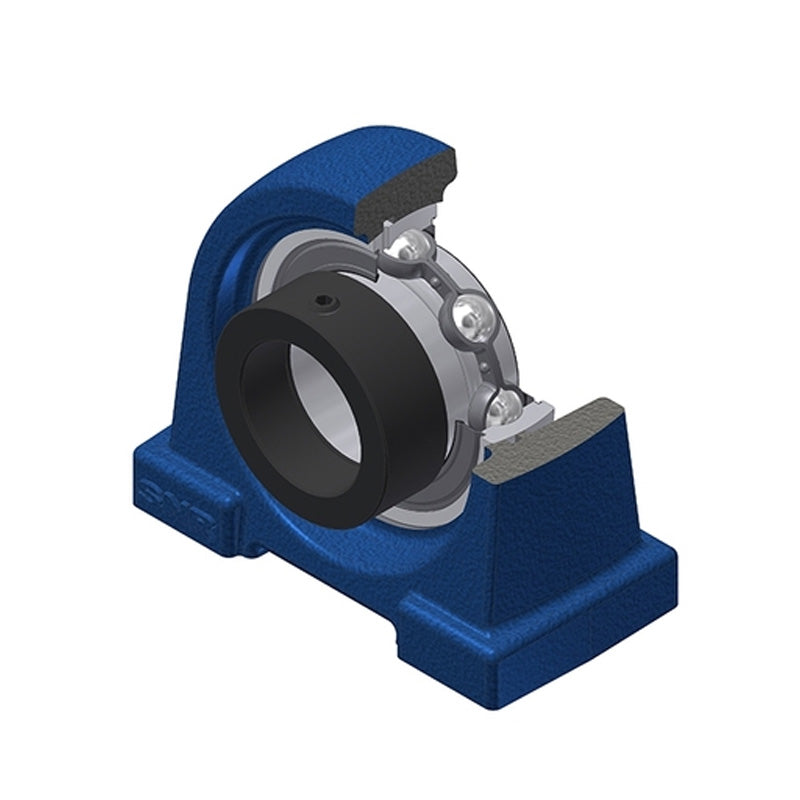

ESPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15mm
- Style:
- ESPG
- Bolt Hole Centres:
- 38mm
Technical
Technical

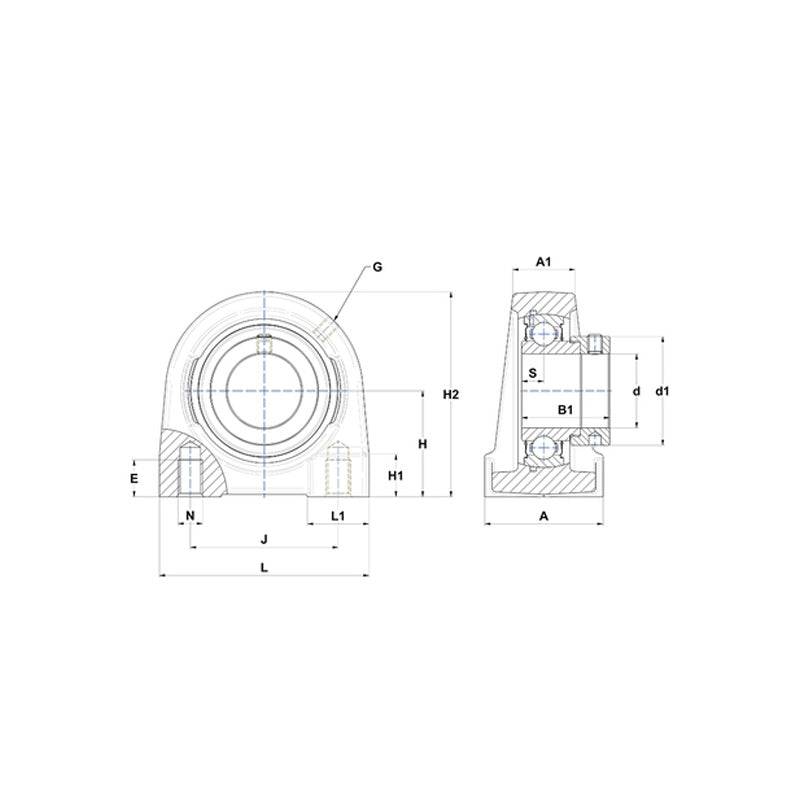

| --- | Dimensions |
|---|---|
| Shaft diameter | 15mm |
| A | 30mm |
| A1 | 13mm |
| B | 19.1mm |
| d1 | 27.2mm |
| E | 13mm |
| H | 30.2mm |
| H1 | 14mm |
| H2 | 57mm |
| J | 38mm |
| L | 55mm |
| L1 | 17mm |
| N | M6 |
| S | 6.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.35 kg |
