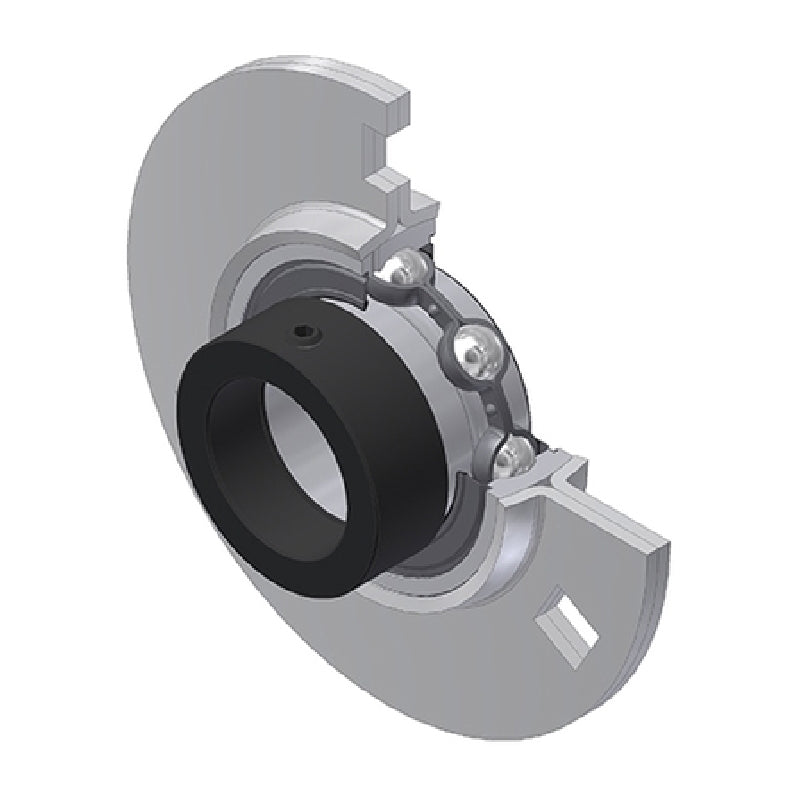

SNR ESPF210 Round 4 Bolt Pressed Steel Bearing Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESPF210 Round 4 Bolt Pressed Steel Bearing Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
£38.56
ex VAT£46.27inc. VAT
Regular price
Sale price
£38.56
ex VAT£46.27
inc. VAT
In stock
Price Break
3+
£34.31
4+
£32.39
9+
£32.00
19+
£31.62
49+
£31.23
99+
£30.84
499+
£28.92
999+
£28.53
1999+
£28.15
2999+
£27.76
4999+
£26.99
Description
Description
|
3 Bolt Round Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing Note: Bearing units of 40mm / 1-1/2 or larger have 4 bolt holes |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- ESPF
- Pitch Circle Diameter:
- 127mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 10.5mm |
| A1 | 8mm |
| A2 | 32.7mm |
| B | 30.2mm |
| B1 | 43.7mm |
| d1 | 67.2mm |
| H | 155.6mm |
| J | 127mm |
| N | 13.5mm |
| S | 11mm |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.68 kg |
