SKU: ESPAE210-SNR

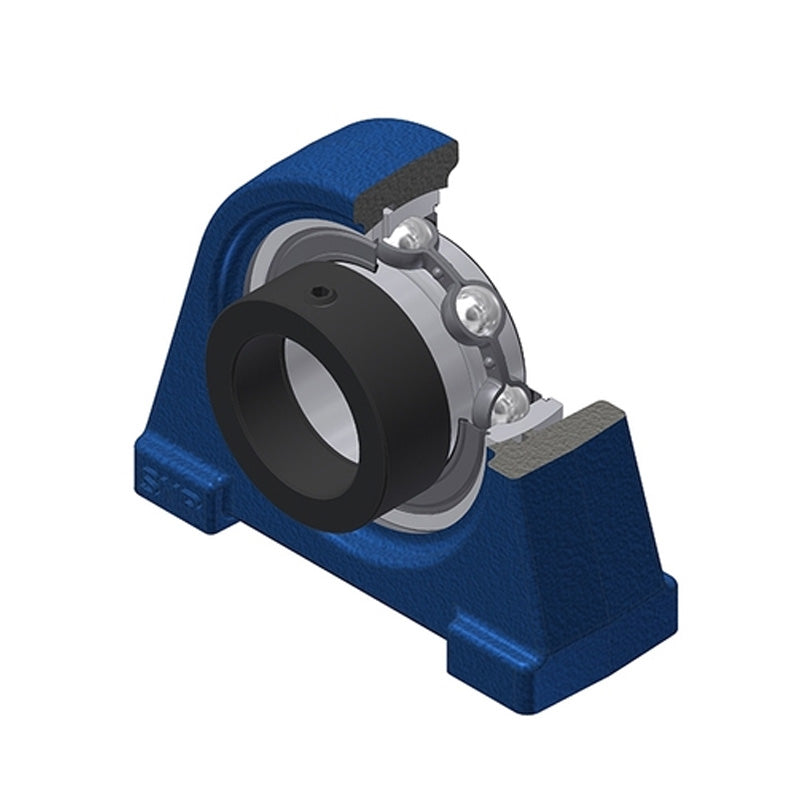

SNR ESPAE210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days
SNR ESPAE210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days
Regular price
£48.69
ex VAT£58.43inc. VAT
Regular price
Sale price
£48.69
ex VAT£58.43
inc. VAT
In stock
Price Break
3+
£43.34
4+
£40.90
9+
£40.42
19+
£39.93
49+
£39.44
99+
£38.96
499+
£36.52
999+
£36.03
1999+
£35.55
2999+
£35.06
4999+
£34.09
Description
Description
|
ESPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- ESPAE
- Bolt Hole Centres:
- 101.6mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 54mm |
| A1 | 34mm |
| B | 30.2mm |
| d1 | 67.2mm |
| E | 20mm |
| H | 57.2mm |
| H1 | 15mm |
| H2 | 115mm |
| J | 101.6mm |
| L | 135mm |
| L1 | 33.5mm |
| N | M16 |
| S | 11mm |
| G | R1/8" |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.5 kg |
