SKU: ESFLE210N-SNR

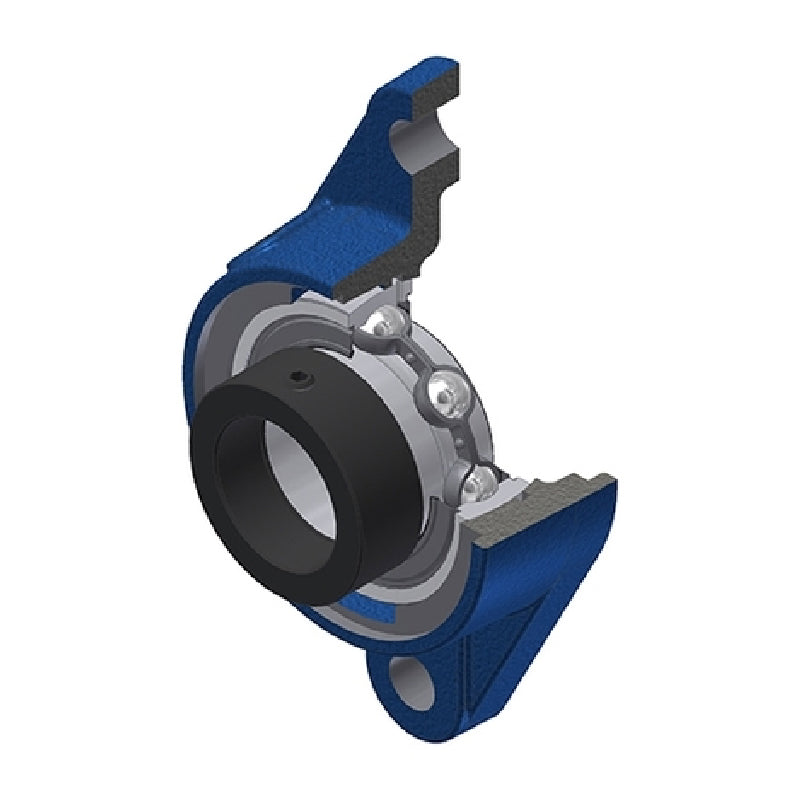

SNR ESFLE210N Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFLE210N Metric Two Bolt Cast Iron Oval Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price £52.05 ex VAT£62.46inc. VAT
Regular price Sale price £52.05 ex VAT£62.46 inc. VAT
Sale Sold out

In stock

Price Break
3+ £46.33
4+ £43.72
9+ £43.20
19+ £42.68
49+ £42.16
99+ £41.64
499+ £39.04
999+ £38.52
1999+ £38.00
2999+ £37.48
4999+ £36.44
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 50mm
A 41.6mm
A1 13mm
A2 60.7mm
B 30.2mm
B1 43.7mm
d1 67.2mm
e 28mm
H 190mm
J 157mm
L 116mm
N 18mm
S 11mm
G R1/8″
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.1 kg
