SKU: ESFLE209-SNR

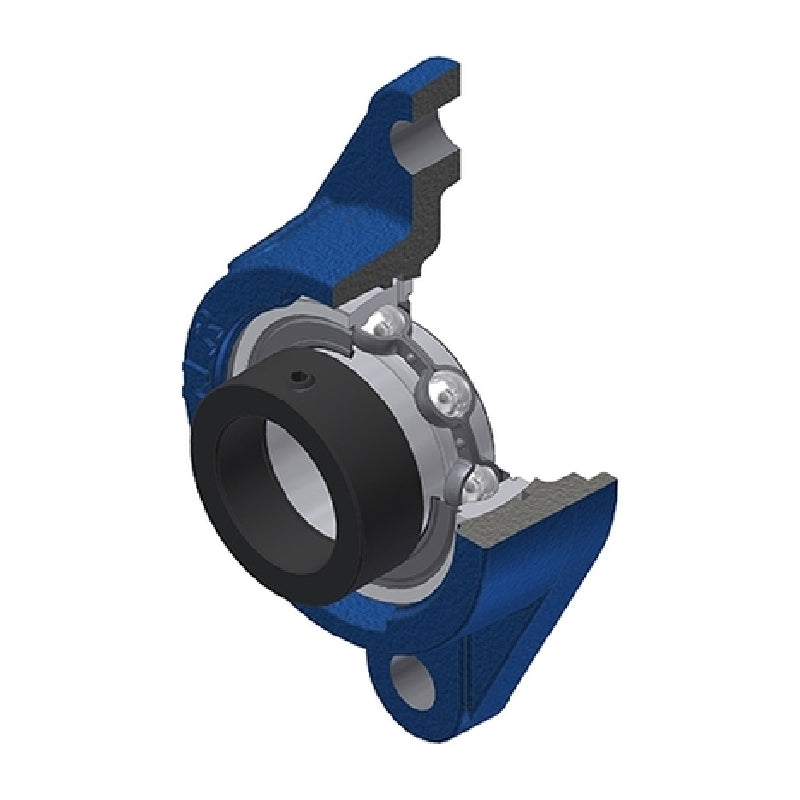

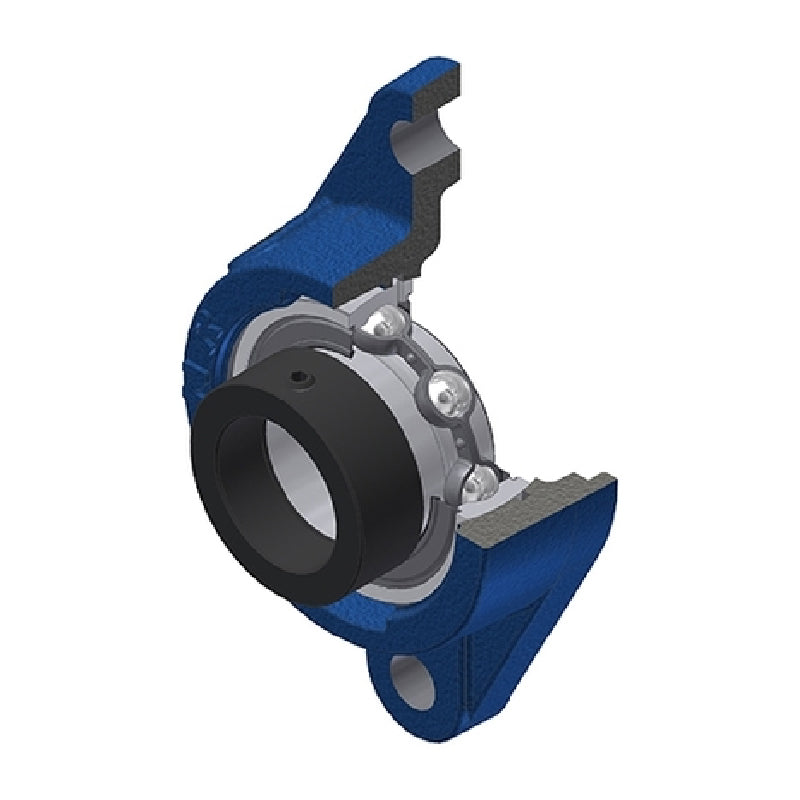

SNR ESFLE209 Metric Two Bolt Cast Iron Oval Housing with 45mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFLE209 Metric Two Bolt Cast Iron Oval Housing with 45mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
£40.48
ex VAT£48.58inc. VAT
Regular price
Sale price
£40.48
ex VAT£48.58
inc. VAT
In stock
Price Break
3+
£36.03
4+
£34.01
9+
£33.60
19+
£33.20
49+
£32.79
99+
£32.39
499+
£30.36
999+
£29.96
1999+
£29.55
2999+
£29.15
4999+
£28.34
Share this product
Description
Description
ESFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- ESFLE
- Bolt Hole Centres:
- 148.5mm
Technical
Technical

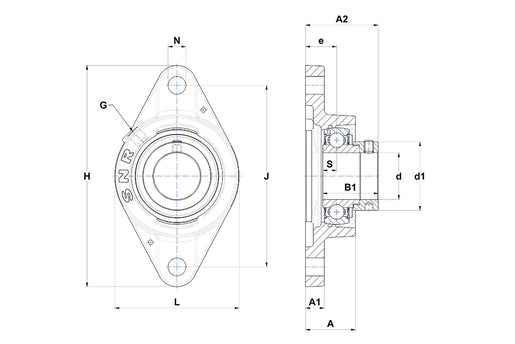

| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 37.5mm |
| A1 | 13mm |
| A2 | 56.7mm |
| B | 30.2mm |
| B1 | 43.7mm |
| d1 | 62mm |
| e | 24mm |
| H | 180mm |
| J | 148.5mm |
| L | 111mm |
| N | 14mm |
| S | 11mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.79 kg |
