SKU: ESFLE206N-SNR

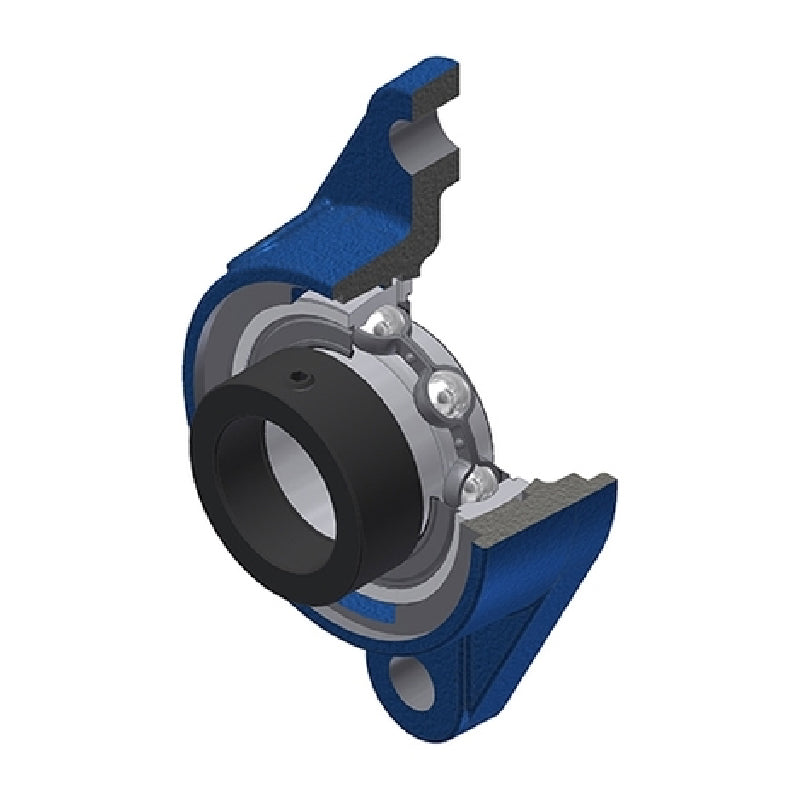

SNR ESFLE206N Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR ESFLE206N Metric Two Bolt Cast Iron Oval Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price £42.41 ex VAT£50.89inc. VAT
Regular price Sale price £42.41 ex VAT£50.89 inc. VAT
Sale Sold out

In stock

Price Break
3+ £37.75
4+ £35.63
9+ £35.20
19+ £34.78
49+ £34.35
99+ £33.93
499+ £31.81
999+ £31.38
1999+ £30.96
2999+ £30.54
4999+ £29.69
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 30mm
A 32.1mm
A1 12mm
A2 46.7mm
B 23.8mm
B1 35.7mm
d1 44.1mm
e 20mm
H 142mm
J 116.5mm
L 80mm
N 11.5mm
S 9mm
G R1/8″
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 0.83 kg
