SKU: ESFLE202-SNR

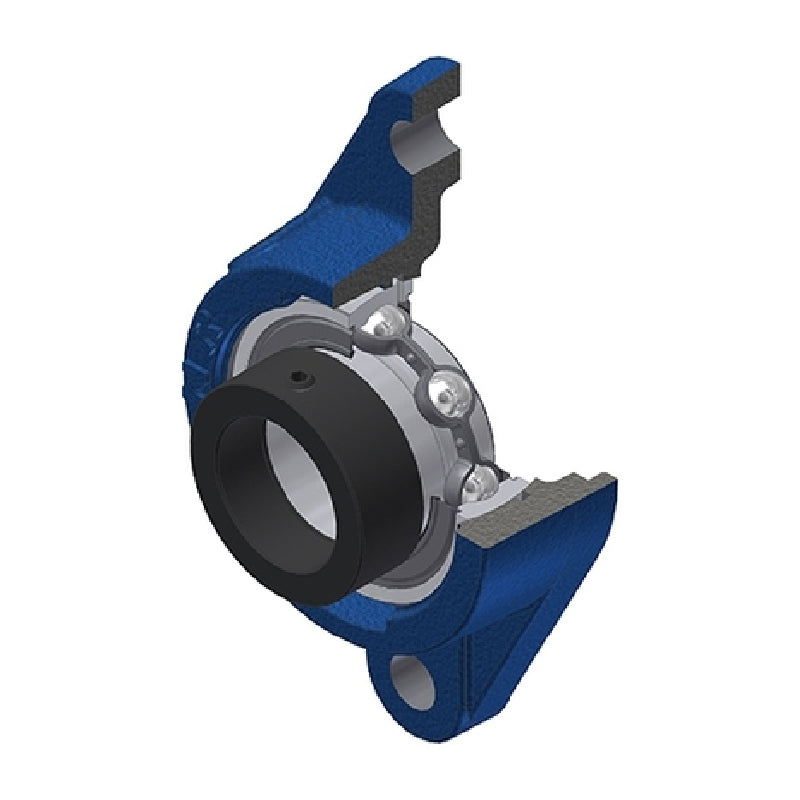

SNR ESFLE202 Metric Two Bolt Cast Iron Oval Housing with 15mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFLE202 Metric Two Bolt Cast Iron Oval Housing with 15mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
£22.17
ex VAT£26.60inc. VAT
Regular price
Sale price
£22.17
ex VAT£26.60
inc. VAT
In stock
Price Break
3+
£19.74
4+
£18.63
9+
£18.41
19+
£18.18
49+
£17.96
99+
£17.74
499+
£16.63
999+
£16.41
1999+
£16.19
2999+
£15.97
4999+
£15.52
Share this product
Description
Description
ESFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15mm
- Style:
- ESFLE
- Bolt Hole Centres:
- 76.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 15mm |
| A | 26mm |
| A1 | 9.5mm |
| A2 | 39.1mm |
| B | 19.1mm |
| B1 | 28.6mm |
| d1 | 27.2mm |
| e | 17mm |
| H | 99mm |
| J | 76.5mm |
| L | 57mm |
| N | 11.5mm |
| S | 6.5mm |
| G | M6 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.39 kg |
