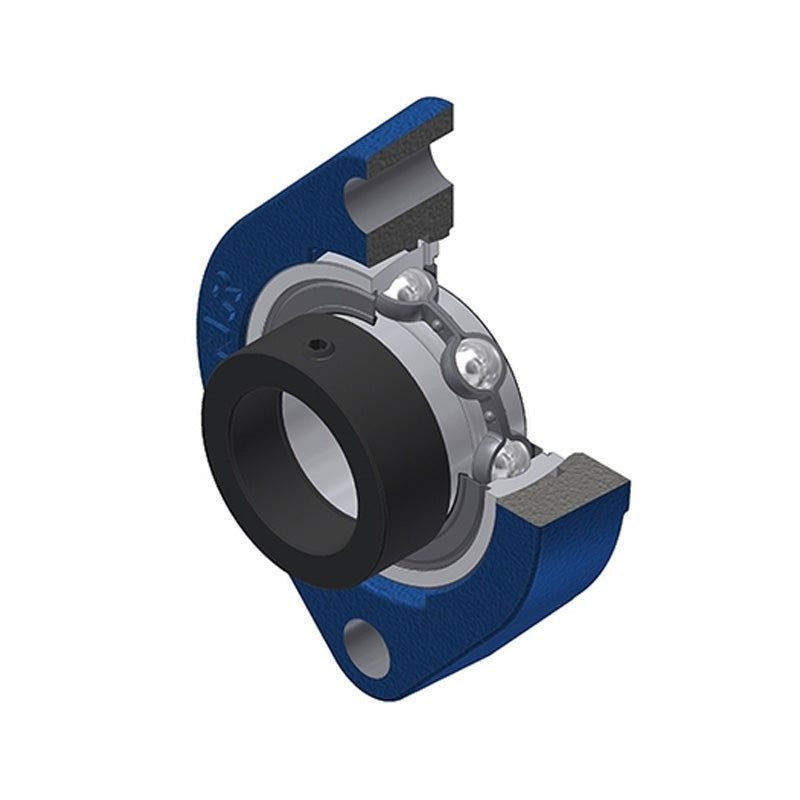

SNR ESFD202 Metric Two Bolt Cast Iron Oval Housing with 15mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFD202 Metric Two Bolt Cast Iron Oval Housing with 15mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
£22.49
ex VAT£26.99inc. VAT
Regular price
Sale price
£22.49
ex VAT£26.99
inc. VAT
In stock
Price Break
3+
£20.02
4+
£18.89
9+
£18.67
19+
£18.44
49+
£18.22
99+
£17.99
499+
£16.87
999+
£16.64
1999+
£16.42
2999+
£16.19
4999+
£15.74
Share this product
Description
Description
ESFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15mm
- Style:
- ESFD
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 15mm |
| A | 15mm |
| A2 | 30.5mm |
| B | 19.1mm |
| e | 8.4mm |
| H | 81mm |
| J | 63.5mm |
| L | 58.7mm |
| N | 6.5mm |
| S | 6.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.33 kg |
