SKU: ESFCE208-SNR

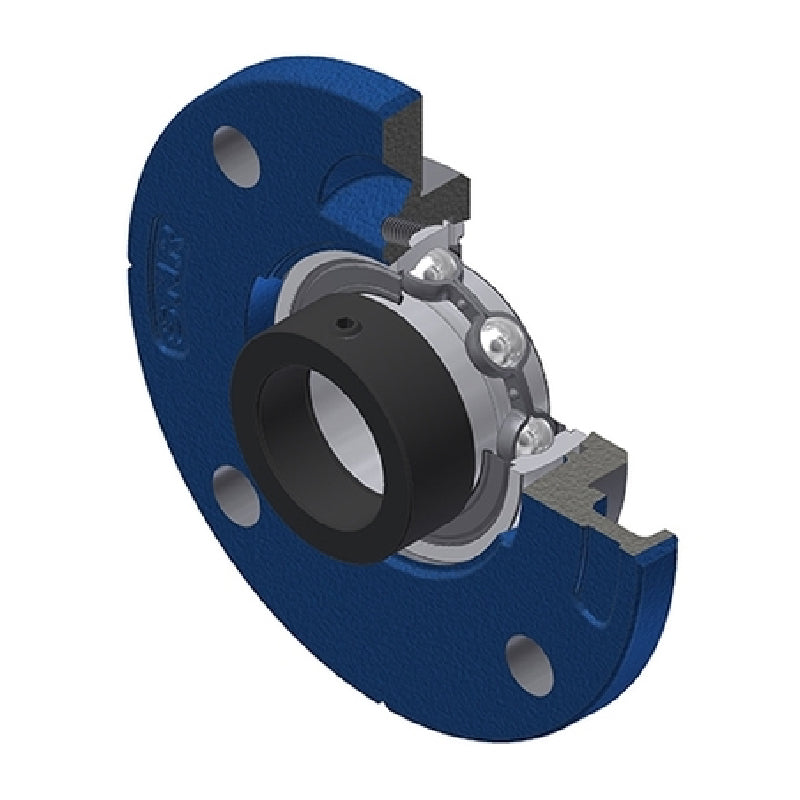

SNR ESFCE208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESFCE208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
£40.48
ex VAT£48.58inc. VAT
Regular price
Sale price
£40.48
ex VAT£48.58
inc. VAT
In stock
Price Break
10+
£36.03
19+
£34.00
29+
£33.60
39+
£33.19
49+
£32.79
74+
£32.38
99+
£30.36
199+
£29.96
249+
£29.55
499+
£29.15
999+
£28.34
Couldn't load pickup availability
Description
Description
ESFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- ESFCE
- Pitch Circle Diameter:
- 120mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 23mm |
| A1 | 11.5mm |
| A2 | 31.7mm |
| A3 | 2mm |
| B | 30.2mm |
| B1 | 43.7mm |
| d1 | 58mm |
| e | -1mm |
| H3 | 100mm |
| J | 120mm |
| L | 145mm |
| N | 11.5mm |
| S | 11mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.65 kg |
