SKU: ESFC211-SNR

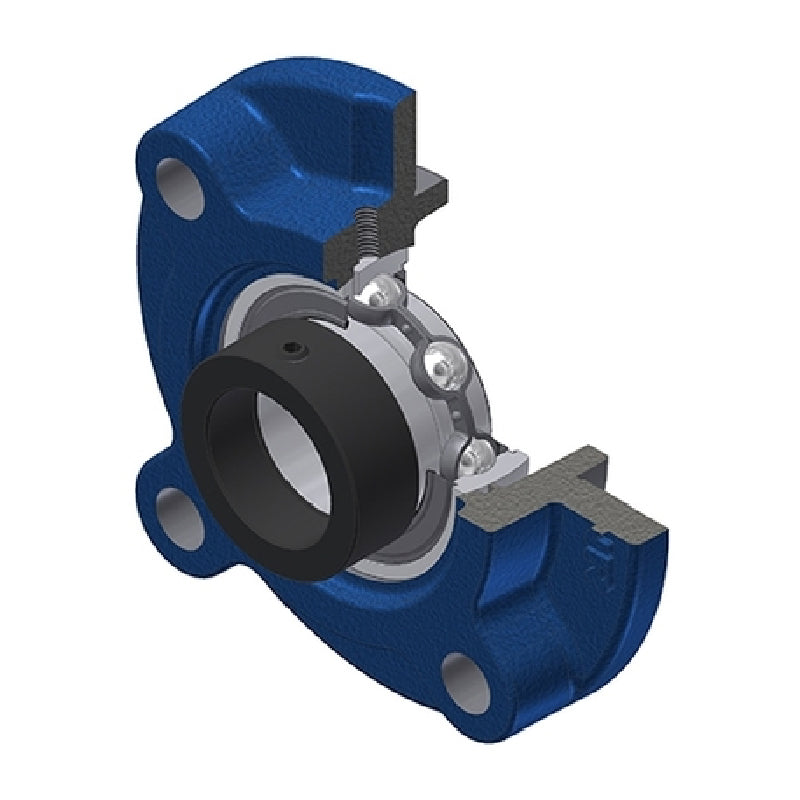

SNR ESFC211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
SNR ESFC211 Metric Four Bolt Cast Iron Round Flanged Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
£56.55
ex VAT£67.86inc. VAT
Regular price
Sale price
£56.55
ex VAT£67.86
inc. VAT
In stock
Price Break
10+
£50.33
19+
£47.50
29+
£46.94
39+
£46.37
49+
£45.81
74+
£45.24
99+
£42.41
199+
£41.85
249+
£41.28
499+
£40.72
999+
£39.59
Couldn't load pickup availability
Description
Description
ESFC200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- ESFC
- Pitch Circle Diameter:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 42mm |
| A1 | 13mm |
| A2 | 49.4mm |
| A4 | 30mm |
| B | 32.5mm |
| B1 | 48.4mm |
| d1 | 74.5mm |
| e | 13mm |
| H3 | 125mm |
| J | 150mm |
| L | 185mm |
| N | 19mm |
| S | 12mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.58 kg |
