SKU: ESFA211N-SNR

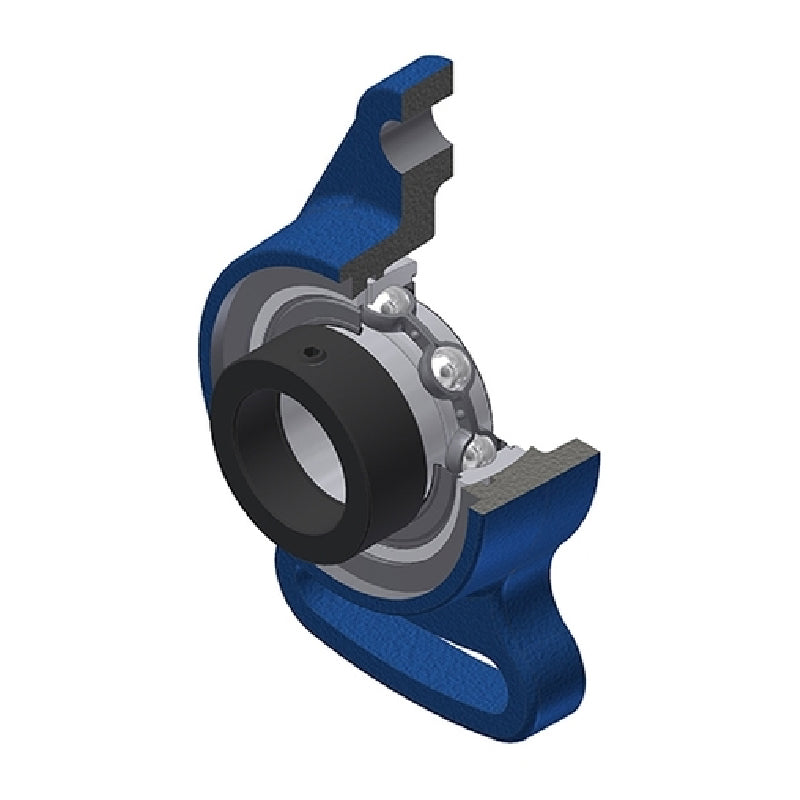

SNR ESFA211N Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days

SNR ESFA211N Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days
Regular price £77.59 ex VAT£93.11inc. VAT
Regular price Sale price £77.59 ex VAT£93.11 inc. VAT
Sale Sold out

In stock

Price Break
3+ £76.81
4+ £73.71
9+ £72.16
19+ £69.83
49+ £68.28
99+ £64.40
499+ £54.31
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 55mm
A 43mm
A1 20mm
A2 61.4mm
B 32.5mm
B1 48.4mm
d1 74.5mm
e 25mm
H 219mm
J 184mm
J1 86mm
L 130mm
L1 104mm
N 16mm
S 12mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.87 kg
