SKU: ESFA207N-SNR

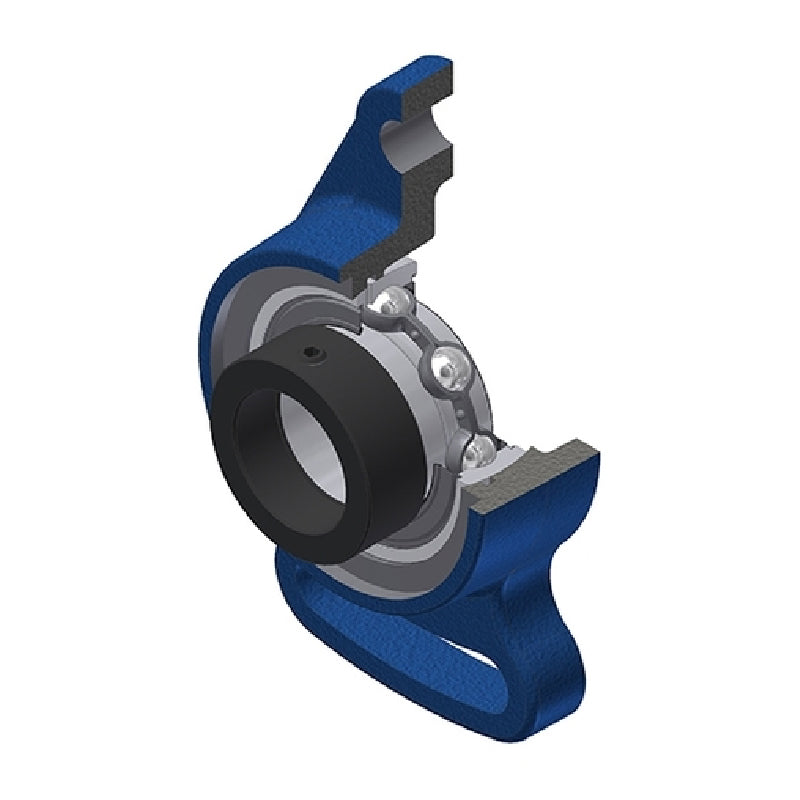

SNR ESFA207N Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days

SNR ESFA207N Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
Regular price £66.41 ex VAT£79.69inc. VAT
Regular price Sale price £66.41 ex VAT£79.69 inc. VAT
Sale Sold out

In stock

Price Break
3+ £65.75
4+ £63.09
9+ £61.76
19+ £59.77
49+ £58.44
99+ £55.12
499+ £46.49
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 35mm
A 34mm
A1 16mm
A2 48.4mm
B 25.4mm
B1 38.9mm
d1 51.1mm
e 19mm
H 161mm
J 130mm
J1 66mm
L 90mm
L1 82mm
N 15mm
S 9.5mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.3 kg
