SKU: ESFA206-SNR

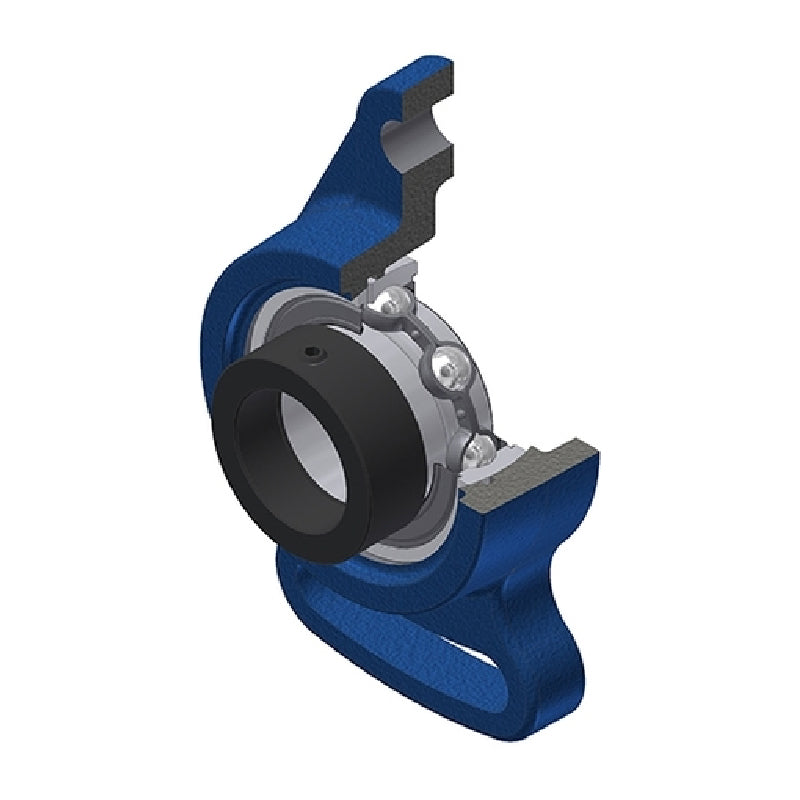

SNR ESFA206 Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days
SNR ESFA206 Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 30mm Bore - Allow 2-3 Days
Regular price
£35.45
ex VAT£42.54inc. VAT
Regular price
Sale price
£35.45
ex VAT£42.54
inc. VAT
In stock
Price Break
5+
£35.10
10+
£33.68
20+
£32.97
50+
£31.91
100+
£31.20
500+
£29.42
1000+
£24.82
Couldn't load pickup availability
Description
Description
ESFA200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- ESFA
- Bolt Hole Centres:
- 117mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 31mm |
| A1 | 14mm |
| A2 | 44.7mm |
| B | 23.8mm |
| B1 | 35.7mm |
| d1 | 44.1mm |
| e | 18mm |
| H | 144mm |
| J | 117mm |
| J1 | 58mm |
| L | 80mm |
| L1 | 72mm |
| N | 12mm |
| S | 9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 0.93 kg |
