SKU: ESEHE210-SNR

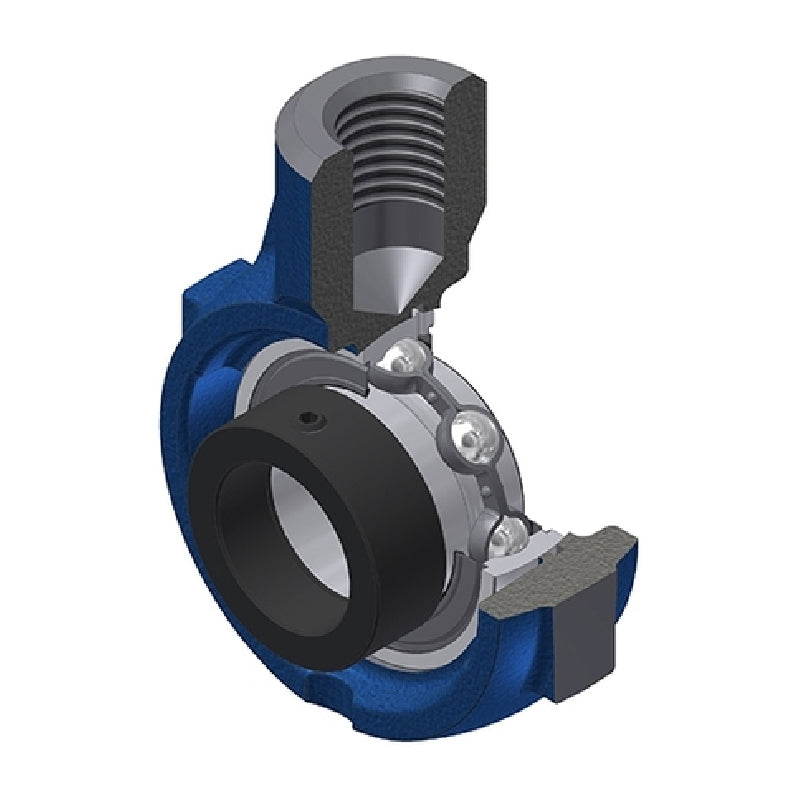

SNR ESEHE210 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days
SNR ESEHE210 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 50mm Bore - Allow 2-3 Days
Regular price
£66.45
ex VAT£79.74inc. VAT
Regular price
Sale price
£66.45
ex VAT£79.74
inc. VAT
In stock
Price Break
5+
£65.79
10+
£63.13
20+
£61.80
50+
£59.81
100+
£58.48
500+
£55.15
1000+
£46.52
Couldn't load pickup availability
Description
Description
ESEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and include a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- ESEHE
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 40mm |
| A2 | 40mm |
| B1 | 43.7mm |
| d1 | 67.2mm |
| E | 24mm |
| H | 110mm |
| L | 145mm |
| L1 | 90mm |
| L3 | 46mm |
| S | 11mm |
| G | R1/8″ |
| G1 | M24 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.8 kg |
