SKU: EGLM-08

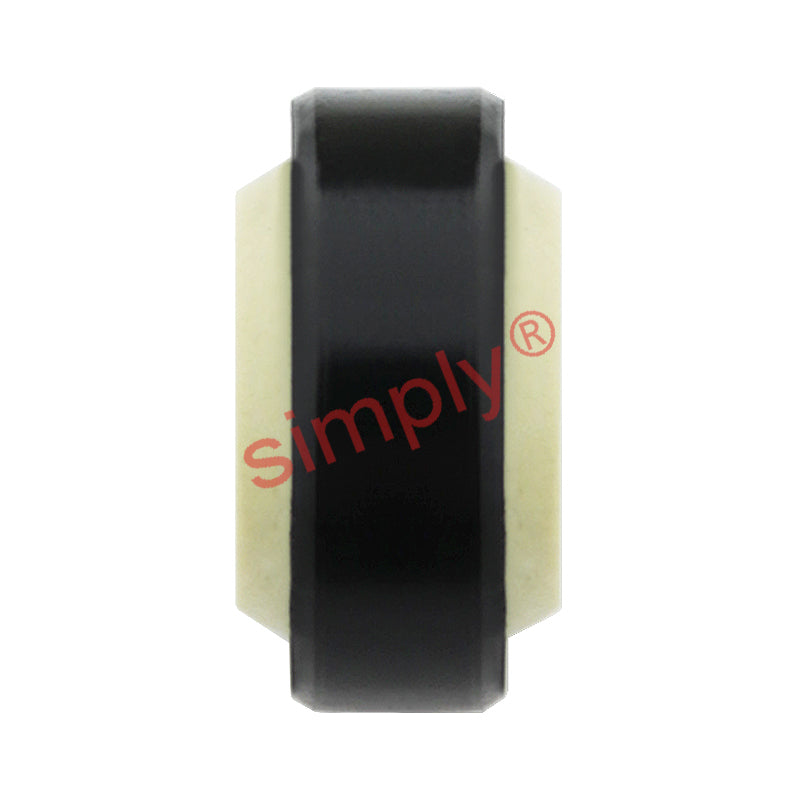

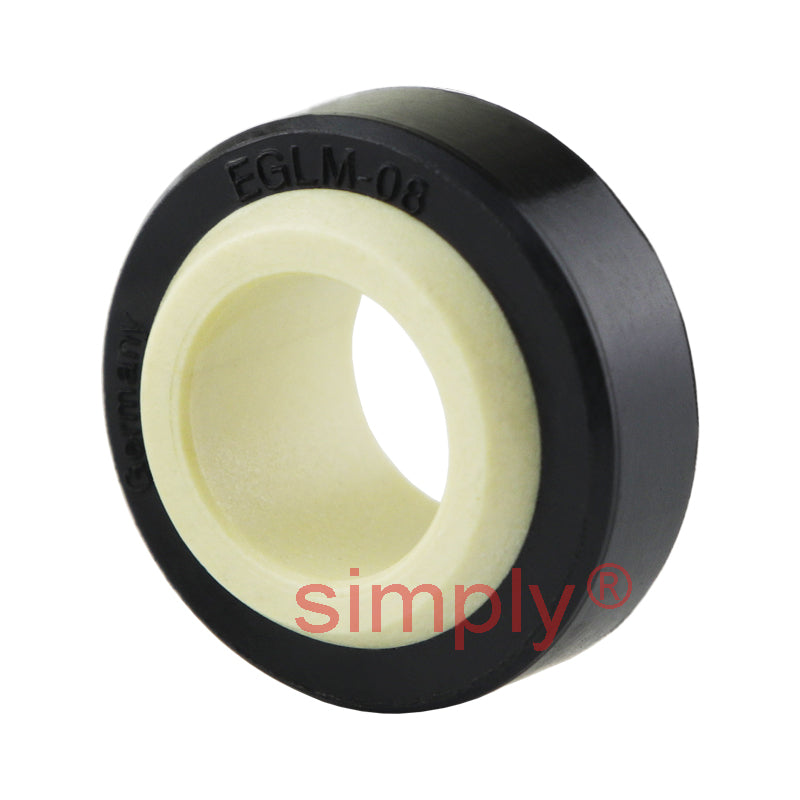

Igus EGLM08 Spherical Plain Bearing 8x16x8mm
Igus EGLM08 Spherical Plain Bearing 8x16x8mm
Regular price
£8.93
ex VAT£10.72inc. VAT
Regular price
Sale price
£8.93
ex VAT£10.72
inc. VAT
In stock
Price Break
5+
£7.95
9+
£7.50
29+
£7.41
49+
£7.32
99+
£7.23
199+
£7.14
299+
£6.70
399+
£6.61
499+
£6.52
749+
£6.43
999+
£6.25
Share this product
Description
Description
EGLM Spherical Plain Bearings: These bearings are commonly used in the food industry, automotive industry, railway technology or plant construction. These bearings are popular due to the following reasons; high axial and radial loads, easy to install, great chemical resistance, cost-effective and the ability to adjust misalignments.
Benefits: Compensation of misalignment and edge loads, corrosion-resistant, suitable for rotating, oscillating and axial movements.
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 16mm
- Width:
- 8mm
Technical
Technical

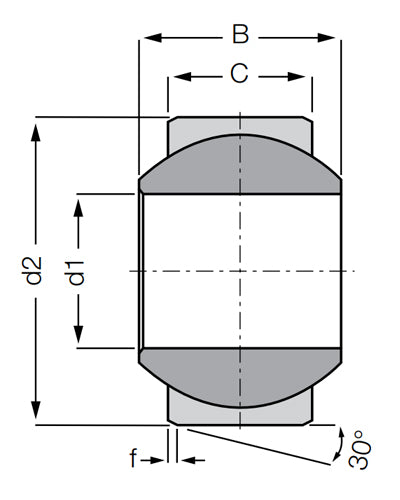

| d1 | 8mm |
|---|---|
| d2 | 16mm |
| B | 8mm |
| C | 5mm |
| f | 0.5mm |
| Max Static Compressive Strength (Radial) | 303 lbs |
| Max Static Compressive Strength (Axial) | 39 lbs |
| Max Torque Through Ball | 5.2 ft lbs |
| Max Pivot Angle | 24 deg |
| Weight | 0.001 kg |
