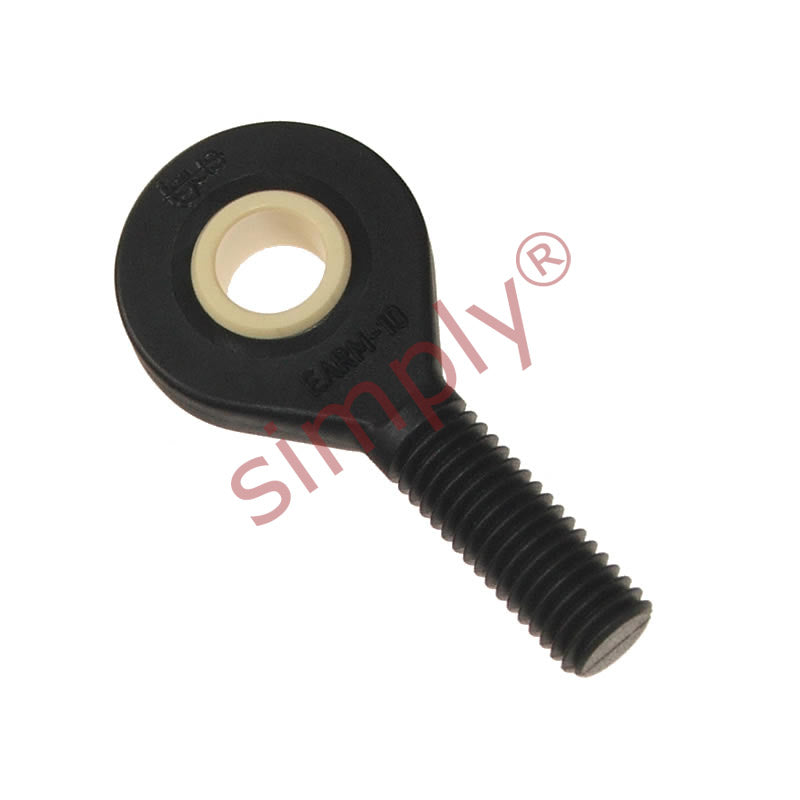

• igubal EARM10 Right Hand Male Plastic Rod End 10mm Bore M10 Thread
1 1

SKU: EARM-10

igubal EARM10 Right Hand Male Plastic Rod End 10mm Bore M10 Thread

igubal EARM10 Right Hand Male Plastic Rod End 10mm Bore M10 Thread
£9.17 ex VAT£11.00inc. VAT
£9.17 ex VAT£11.00 inc. VAT
Sale Sold out

In stock

Price Break
4+ £8.16
9+ £7.70
19+ £7.61
29+ £7.52
39+ £7.43
49+ £7.34
59+ £6.88
69+ £6.79
79+ £6.69
89+ £6.60
99+ £6.42
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
IGUS igubal® EARM series slim body right hand male thread rod end bearings: These maintenance free plastic rod ends are a dry operation solution with a high stiffening and very high fatigue strength in varying loads. They compensate for misalignment errors and edge loads and are insensitive to dirt, dust and lint and have high dampening qualities. They are resistant to corrosion and chemicals.
Operating Temperature Range: -30 Deg C to + 80 Deg C long term - short term up to +120 Deg C
Materials: Ball material iglidur® W300, Housing: igumid G
Uses: They are suitable for rotary, oscillating and linear movements and are light weight.
Tolerances: They are manufactured in accordance to DIN ISO 12240
Benefits: Corrosion and chemical resistant, lightweight, stiff, dry operation, maintenance free
Brand / Quality:
Igus - High Quality
Thread Size:
M10
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
10mm
Technical
d1 10mm
d2 29mm
d3 M10
C1 7mm
B 9mm
h 47.5mm
l1 27mm
l2 62mm
Max pivot angle 24°
Max static tensile strength (short term) 2600 N
Max static tensile strength (long term) 1300 N
Max radial load (short term) 250 N
Max radial load (long term) 125 N
Min thread depth 19mm
Max torque outside thread 5 Nm
Max torque through ball 14 Nm
Weight 8.4 g
