SKU: E40-KRR-B-INA

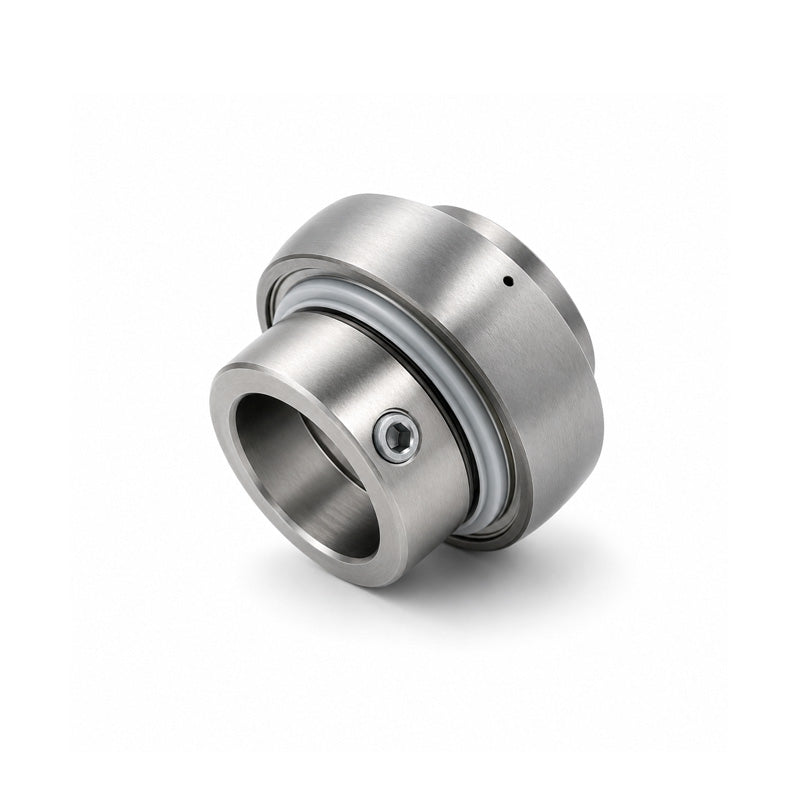

INA E40XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 40x80x56.5mm
INA E40XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 40x80x56.5mm
Regular price
£43.35
ex VAT£52.02inc. VAT
Regular price
Sale price
£43.35
ex VAT£52.02
inc. VAT
In stock
Price Break
10+
£38.58
19+
£36.41
29+
£35.98
39+
£35.55
49+
£35.11
74+
£34.68
99+
£32.51
199+
£32.08
249+
£31.65
499+
£31.21
999+
£30.35
Couldn't load pickup availability
Description
Description
|
INA E..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 56.5mm
- Type:
- Spherical Outer
Technical
Technical
| d | 40mm |
|---|---|
| Dsp | 80mm |
| B1 | 56.5mm |
| B | 42.9mm |
| C | 21mm |
| C2 | 23.5mm |
| D1 | 68.3mm |
| d1 | 52.3mm |
| d3 max | 58mm |
| S | 21.4mm |
| W | 5mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Weight | 0.73 kg |
