SKU: E30-KLL-INA

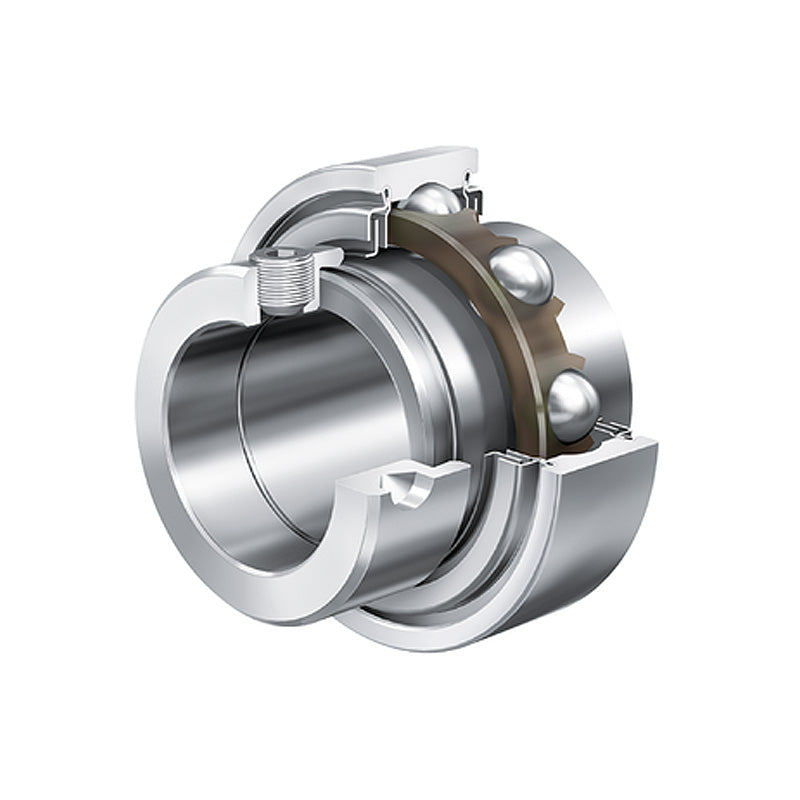

INA E30XLKLL Metric Parallel Outer Bearing Insert with L Seals and Eccentric Collar 30x62x48.5mm
INA E30XLKLL Metric Parallel Outer Bearing Insert with L Seals and Eccentric Collar 30x62x48.5mm
Regular price
£43.44
ex VAT£52.13inc. VAT
Regular price
Sale price
£43.44
ex VAT£52.13
inc. VAT
In stock
Price Break
3+
£38.66
5+
£36.49
10+
£36.06
15+
£35.62
20+
£35.19
30+
£34.75
40+
£32.58
50+
£32.15
60+
£31.71
75+
£31.28
100+
£30.41
Description
Description
|
INA E..-KLL Series Inserts: Bearing insert with parallel outer race, L seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 48.5mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B1 | 48.5mm |
| B | 36.5mm |
| C | 18mm |
| C2 | 20.6mm |
| D1 | 52mm |
| d1 | 40.2mm |
| d3 max | 44mm |
| S | 18.3mm |
| W | 4mm |
| Dynamic load Cr | 19500 N |
| Static load C0r | 11300 N |
| Weight | 0.39 kg |
