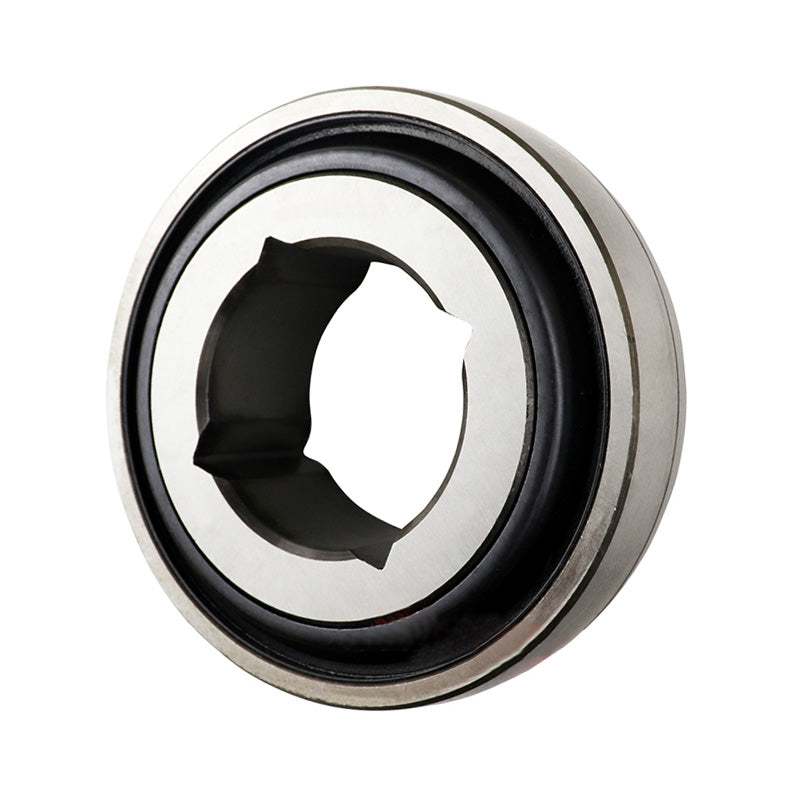

RHP DNF155/12 Spherical Outer Square 1-1/2 inch Bore Bearing 100mm Outside Diameter

Gang Disc
Application conditions:

• Utilizes two to three support bearings on a common shaft with several disks spaced with spools
• Constant and unpredictable movement of the gang shaft can generate severe stress on the internal components of the support bearings
• A great working depth places the bearings directly into the flow of soil and crop residue

• Directly interchangeable industry standard units
• Static misalignment capability accommodates imprecise mounting surfaces

• Dynamic misalignment capability eliminates internal bearing damage
• Shock load protection due to high grade ductile iron housing
• Exclusive patented sealing system eliminates the need for daily relubrication

Brand / Quality:

RHP - High Quality

Inside Diameter:

38.1mm = 1.5 (1-1/2) inch

Outside Diameter:

100mm

Style:

DNF
