SKU: DL61/20-20X38X26

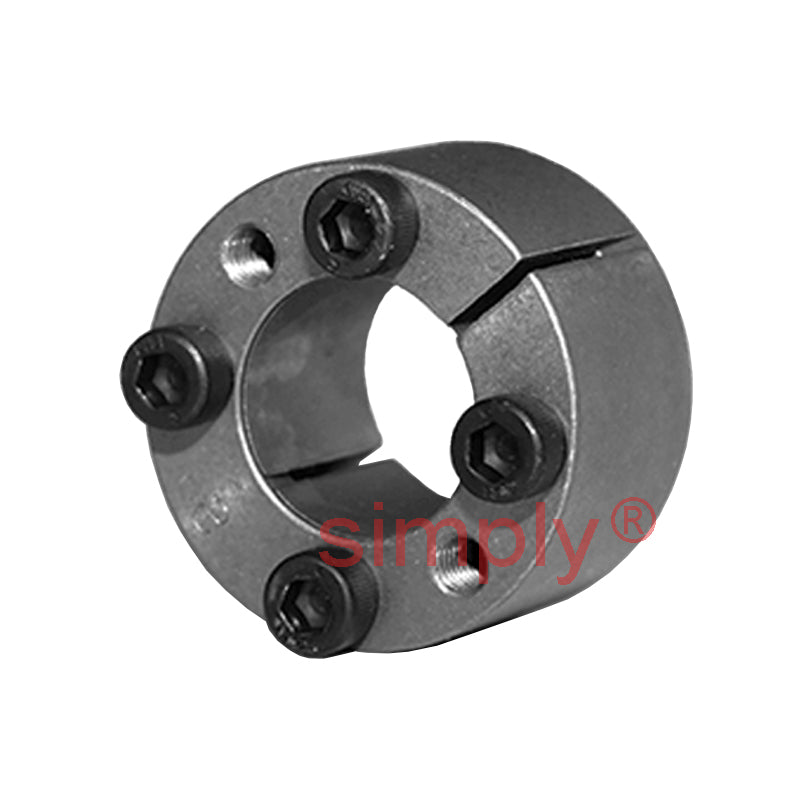

Major Brand DL61/20 Steel DRIVELOCK Bush 20x38x26mm - Allow 2-3 Days
Major Brand DL61/20 Steel DRIVELOCK Bush 20x38x26mm - Allow 2-3 Days
Regular price
£21.68
ex VAT£26.02inc. VAT
Regular price
Sale price
£21.68
ex VAT£26.02
inc. VAT
In stock
Price Break
10+
£19.30
19+
£18.21
29+
£17.99
39+
£17.78
49+
£17.56
74+
£17.34
99+
£16.26
199+
£16.04
249+
£15.83
499+
£15.61
999+
£15.18
Couldn't load pickup availability
Description
Description
DRIVELOCK 61 Bushes: These bushes are self-centering components designed to provide reliable and precise shaft-hub connections for medium torque applications, ranging from 5 to 1,900 Nm. Their self-centering feature ensures accurate alignment, reducing mechanical stress and vibration. They are available in bore sizes from 5 mm to 50 mm and can also be supplied in imperial sizes upon request. The DRIVELOCK 61 Bushes offer a versatile and efficient solution for a variety of machinery and equipment, ensuring smooth operation and extended component life.
Benefits: Self-centering precision, medium torque handling, versatility in bore sizes
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M5
- Inside Diameter:
- 20mm
- Outside Diameter:
- 38mm
- Width:
- 26mm
- Style:
- DL61
Technical

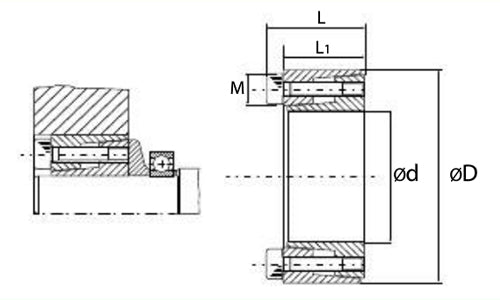

Technical
| Material | Steel |
|---|---|
| d (h8) | 20mm |
| D | 38mm |
| L1 | 21mm |
| L | 26mm |
| M (screws) | M5 |
| Ts | 9.7 Nm |
| T | 150 Nm |
| F | 15 kN |
| p | 75 N/mm2 |
| Shaft | h8 |
| Hub | H8 |
| Weight Kg | 0.1 kg |
