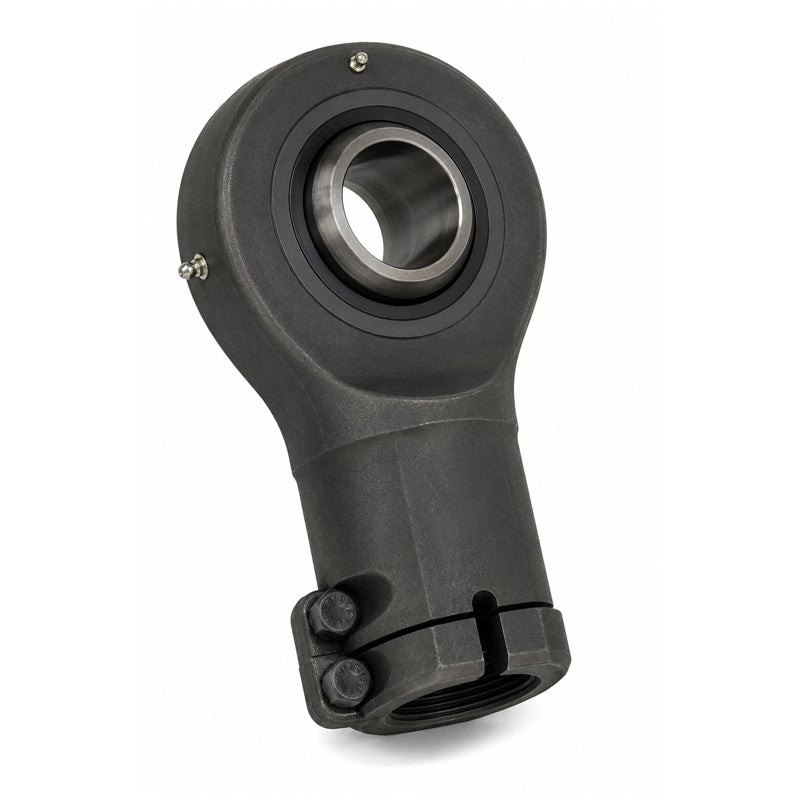

Durbal DGIHO-K20DO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M14x1.5 Thread - Allow 2-3 Days
Durbal DGIHO-K20DO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M14x1.5 Thread - Allow 2-3 Days
Regular price
£31.03
ex VAT£37.24inc. VAT
Regular price
Sale price
£31.03
ex VAT£37.24
inc. VAT
Equivalent to: GIHOK20DO SIJ20ES
In stock
Price Break
10+
£30.72
19+
£29.48
29+
£28.86
39+
£27.93
49+
£27.31
74+
£25.75
99+
£21.72
199+
£0.00
249+
£0.00
499+
£0.00
999+
£0.00
Description
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.
Equivalent: GIHOK20DO SIJ20ES
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M14x1.5
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 20mm
Technical
Technical
| Thread Direction | Right |
|---|---|
| d | 20mm |
| d1 | 24.1mm |
| d2 | 55mm |
| d4 | 25mm |
| d5 | 55mm |
| G (Thread) | M14x1.5mm |
| B | 16mm |
| C1 | 13mm |
| C2 | 17mm |
| l3 | 19mm |
| l4 | 85.5mm |
| l7 | 25mm |
| h1 | 58mm |
| tilt angle α | 9 deg |
| weight | 0.43kg |
| basic load rating dyn C | 24 kN |
| basic load rating stat Co | 34 kN |
| radial clearance CN | 8-82 µm |
