SKU: DG18PW-DURB

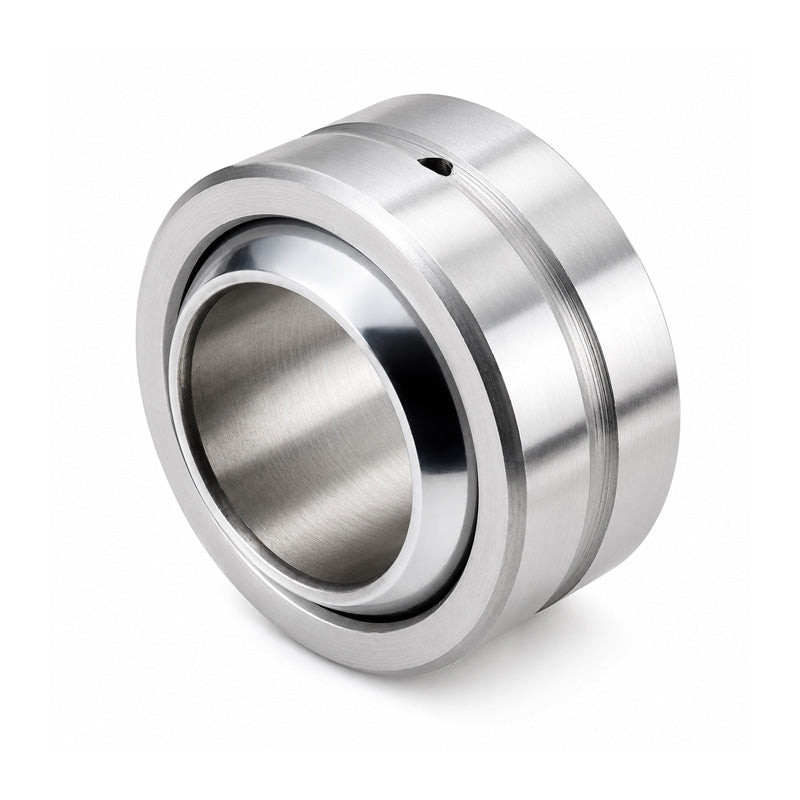

Durbal DG18PW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 18x35x23mm

Name: Durbal DG18PW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 18x35x23mm
Brand: Durbal
SKU: DG18PW-DURB
Price: 20.85 GBP
Availability: InStock

£20.85 ex VAT£25.02inc. VAT

£20.85 ex VAT£25.02 inc. VAT

Sale Sold out

Equivalent to: GE18PW

Low stock

Price Break

10+ £18.56

19+ £17.51

29+ £17.31

39+ £17.10

49+ £16.89

74+ £16.68

99+ £15.64

199+ £15.43

249+ £15.22

499+ £15.01

999+ £14.60

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

DURBAL Spherical-Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, polished steel joint ball with a bearing brass outer ring lined with bronze - PTFE-composite. For use under high pressure and dynamic loads. Sliding combination: bearing brass with inset sliding film of bronze–PTFE compound material. Temperature range: -40 deg C to +200 deg C.

Equivalent: GE18PW

Brand / Quality:: Durbal - High Quality
Inside Diameter:: 18mm
Material:: PTFE Lined

Technical

d	18mm
d1	21.8mm
D	35mm
dk	31.7mm
B	23mm
C	16.5mm
rs	0.4mm
r1s	1.5mm
tilt angle α	15 deg
weight	0.125kg
basic load rating dyn C	47 kN
basic load rating stat Co	131 kN
radial clearance CN	5-35 µm
