SKU: DG10PW-DURB

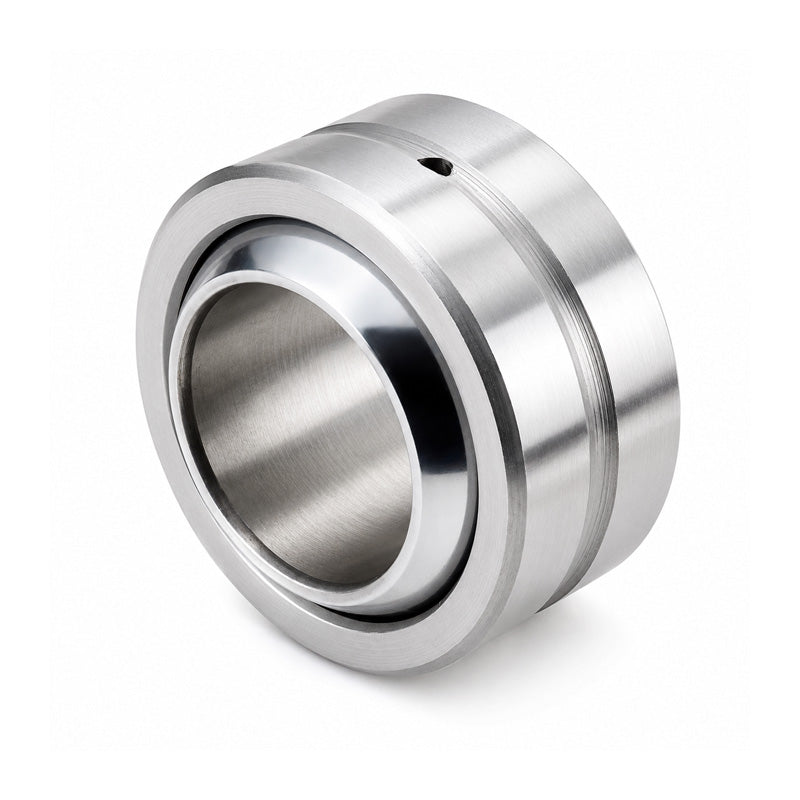

Durbal DG10PW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 10x22x14mm - Allow 2-3 Days

Name: Durbal DG10PW Maintenance Free Steel / PTFE Lined Spherical Plain Bearing 10x22x14mm - Allow 2-3 Days
Brand: Durbal
SKU: DG10PW-DURB
Price: 9.95 GBP
Availability: InStock

£9.95 ex VAT£11.94inc. VAT

£9.95 ex VAT£11.94 inc. VAT

Sale Sold out

Equivalent to: GE10PW

In stock

Price Break

10+ £9.85

19+ £9.45

29+ £9.25

39+ £8.96

49+ £8.76

74+ £8.26

99+ £6.97

199+ £0.00

249+ £0.00

499+ £0.00

999+ £0.00

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

DURBAL Spherical-Plain Bearing - Sliding Combination Steel/PTFE: These spherical bearings consist of a hardened, polished steel joint ball with a bearing brass outer ring lined with bronze - PTFE-composite. For use under high pressure and dynamic loads. Sliding combination: bearing brass with inset sliding film of bronze–PTFE compound material. Temperature range: -40 deg C to +200 deg C.

Equivalent: GE10PW

Brand / Quality:: Durbal - High Quality
Inside Diameter:: 10mm
Material:: PTFE Lined

Technical

d	10mm
d1	12.9mm
D	22mm
dk	19mm
B	14mm
C	10.5mm
rs	0.3mm
r1s	1.2mm
tilt angle α	13 deg
weight	0.031kg
basic load rating dyn C	17 kN
basic load rating stat Co	50 kN
radial clearance CN	4-28 µm
