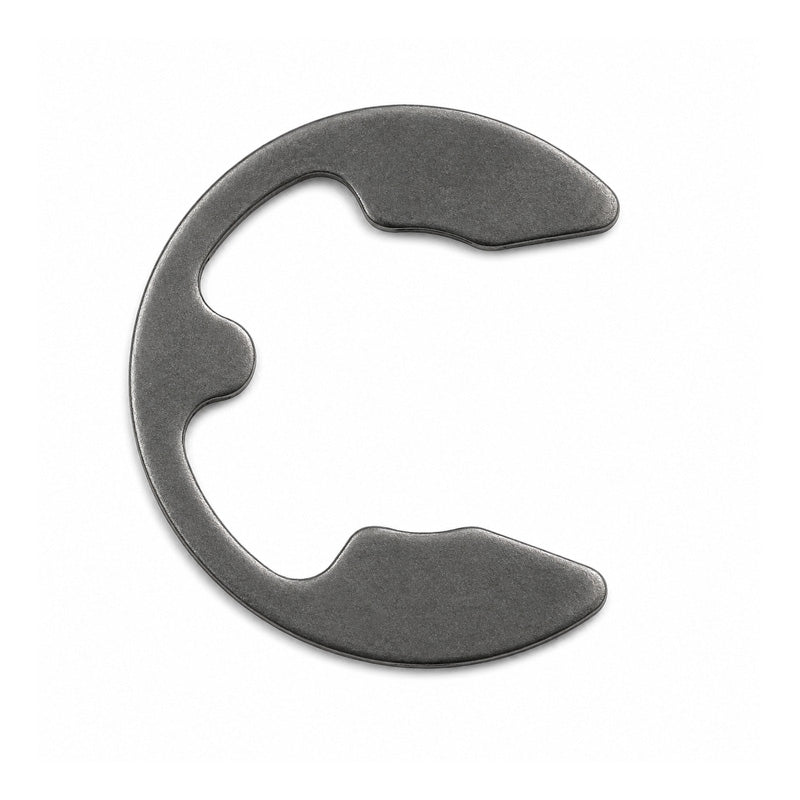

• Sprung Carbon Steel E-Clip for 10mm Groove Diameter
1 1

SKU: D1500-0100

Sprung Carbon Steel E-Clip for 10mm Groove Diameter

Sprung Carbon Steel E-Clip for 10mm Groove Diameter
£0.85 ex VAT£1.02inc. VAT
£0.85 ex VAT£1.02 inc. VAT
Sale Sold out

Equivalent to: D1500-0100

In stock

Price Break
10+ £0.43
20+ £0.29
50+ £0.18
100+ £0.13
500+ £0.07
1000+ £0.05
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

E-Clips: The most common form of radial fitted circlips for shafts with grooves, provides a retaining shoulder on a relatively small shaft diameter. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil.
Note: The groove size is critical with this type of circlip, the shaft diameter can vary slightly. Please see technical tab for more information. The size of clip stated denotes the diameter of the groove into which it fits.
Benefits: Cost effective replacement, durable, removable.

Equivalent: D1500-0100
Brand / Quality:
Simply E-Clips - Economy Quality
Material:
Sprung Carbon Steel
Shaft Size:
12mm
Thickness:
1.2mm
Groove Diameter:
10mm
Technical
--- Clip Dimensions
Shaft Size (d1) 12mm
Shaft Range 11mm to 15mm
Thickness (s) 1.2mm
Thickness Tolerance ±0.03mm
Max Outisde Diameter (d4) 19.7mm
Shoulder Length (n) 2mm
a 8.32mm
a Tolerance ±0.058mm
Weight 1.12kg
--- Speeds and Load Ratings
Max Fling Off Speed 15000rpm
--- Groove Requirements
Groove Diameter (d2) 10mm
Groove Diameter Tolerance +0mm / -0.09mm
Groove Width (m) 1.25mm
Groove Depth (g) 1.8mm
